TR7108 | Cabin Air Spring for Navistar/International Trucks
Description : Cabin Air Spring for Navistar/International Replaces 2500012C1
Part Number : TR7108
Cabin Air Spring for Navistar/International Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7108 |
| Sampa | 501.146‑01 |
| Contitech | 67852, SC29‑Y108 |
| Firestone | 7108, W023587108, W02‑358‑7108, W026007108, W02‑600‑7108 |
| Goodyear | 1S5057, 1S5‑057 |
| IHC | 2500012C1, 2507756C1 |
| Link | 11020075, 1102‑0075 |
| Milsco | 07067A |
| SZ | 708077P02 |

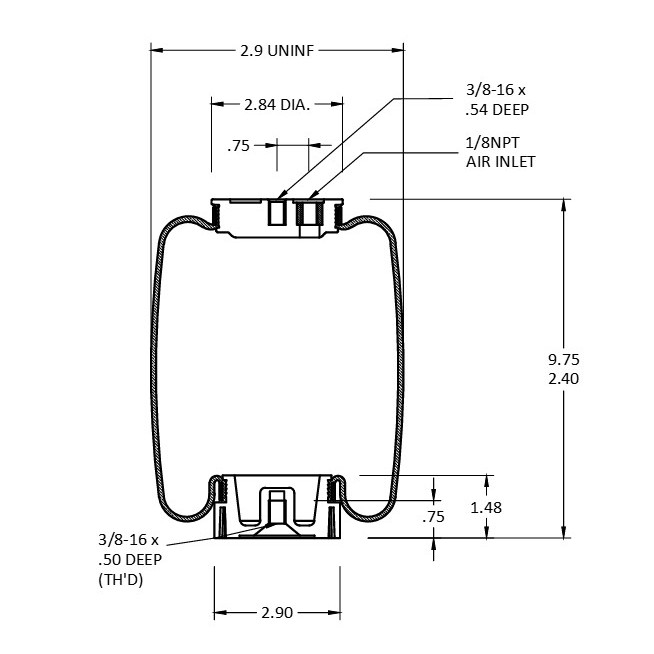

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.54" deep |
| Air Inlet | 1/8" NPT |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.90" |
| Extended Height | 9.75" |
| Compressed Height | 2.40" |
| Weight | 1.8 lbs |
