TR7109 | Cabin Air Spring for Kenworth Trucks
Description : Cabin Air Spring for Kenworth Replaces T81-1000, W02-358-7109
Part Number : TR7109
Cabin Air Spring for Kenworth Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7109 |
| Sampa | 501.102‑01 |
| Contitech | 68037, 69624, SC29Y109, SC29‑Y109 |
| Firestone | 7109, W023587109, W02‑358‑7109, W026007109, W02‑600‑7109, W026007121, W02‑600‑7121 |
| Kenworth | T811000, T81‑1000 |
| Link | 11020077, 1102‑0077, 1102K077, 1102‑K077, 1104K002, 1104‑K002 |
| Roadleveler | T811000 |
| Triangle | AS‑5109 |

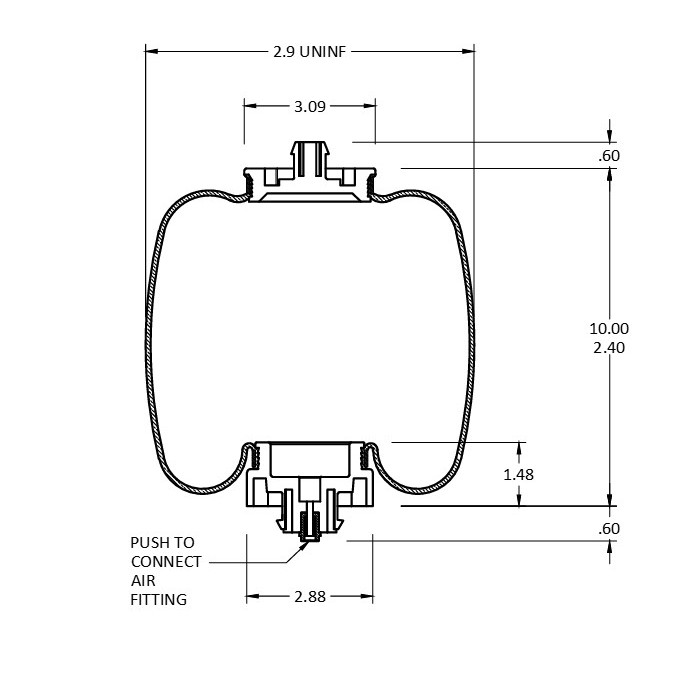

| Property | Value |
|---|---|
| Locating Pin Height | 0.6" |
| Air Inlet | Push‑to‑connect air fitting |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.88" |
| Extended Height | 10.00" |
| Compressed Height | 2.40" |
| Weight | 1.8 lbs |
