TR7110 | Cabin Air Spring for Kenworth Trucks
Description : Cabin Air Spring for Kenworth Replaces R81-1002, W02-358-7110
Part Number : TR7110
Cabin Air Spring for Kenworth Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7110 |
| Sampa | 500.908‑01 |
| Contitech | SC29‑B110 |
| Firestone | 7110, W023587110, W02‑358‑7110, W026007110, W02‑600‑7110 |
| Goodyear | 1S5152, 1S5‑152 |
| IHC | 2588760C1, 2591920C1, 2602754C1 |
| Kenworth | R811002, R81‑1002, T2000 |

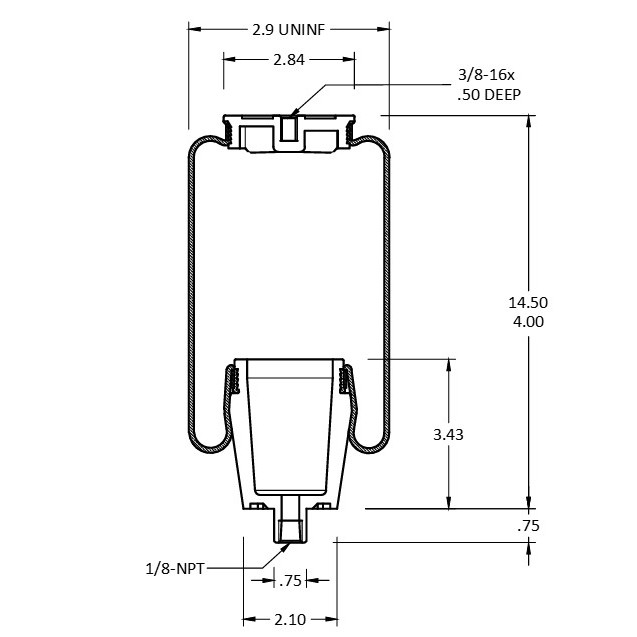

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.5" deep |
| Air Inlet | 1/8" NPT |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.10" |
| Minimum Jounce Height | 6.05" |
| Extended Height | 14.50" |
| Compressed Height | 4.00" |
| Weight | 1.8 lbs |
