TR7164 | Cabin Air Spring for Peterbilt Trucks
Description : Cabin Air Spring for Peterbilt Replaces R81-6002, 1S4-235, 7164
Part Number : TR7164
Cabin Air Spring for Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7164 |
| Contitech | 75314, SC29‑O132 |
| Dynacraft | D50002253, D5000‑2253 |
| Firestone | 7155, 7164, W023587155, W02‑358‑7155, W027037163, W02‑703‑7163, W027037164, W02‑703‑7164, W027037165, W02‑703‑7165 |
| Goodyear | 1S4235, 1S4‑235 |
| Kenworth | R816002, R81‑6002 |
| Paccar | W027037153, W02‑703‑7153 |
| Peterbilt | 2019036, 20‑19036 |

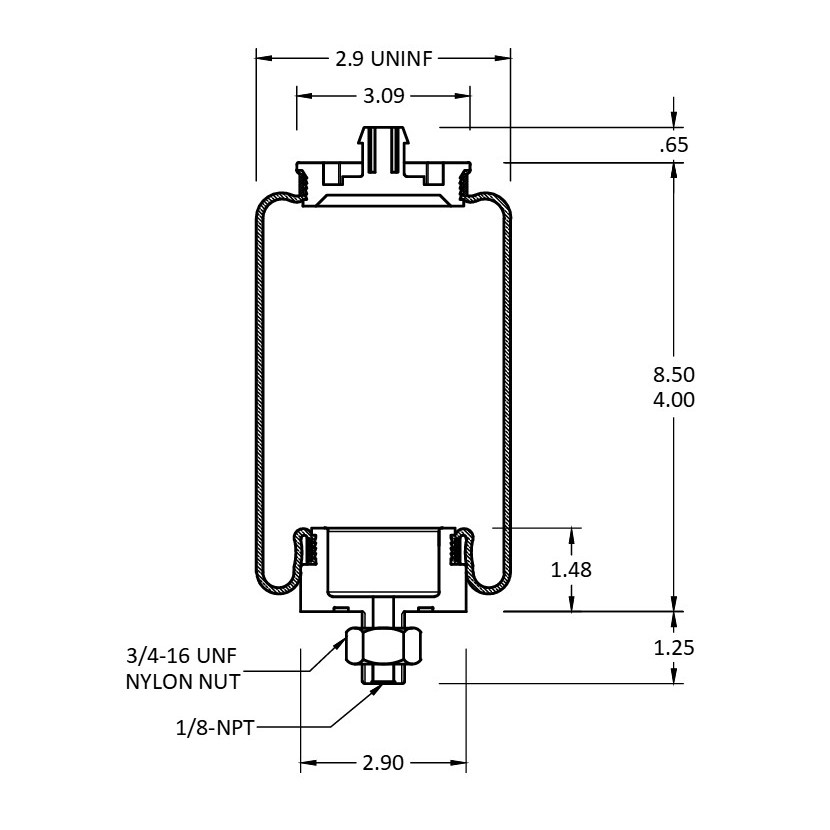

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/4"‑16 |
| Locating Pin Height | 0.65" |
| Air Inlet | 1/8" NPT |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.90" |
| Minimum Jounce Height | 6.05" |
| Extended Height | 8.50" |
| Compressed Height | 4.00" |
| Weight | 1.8 lbs |
