TR7205 | Cabin Air Spring for Freightliner Trucks
Description : Cabin Air Spring for Freightliner Replaces 184-0977-000, 7205
Part Number : TR7205
Cabin Air Spring for Freightliner Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7205 |
| Sampa | 500.909‑01 |
| Alliance | ABP N32 027205 |
| Contitech | 67638, SC31Y205, SC31‑Y205 |
| Firestone | 7203, 7205, W023587205, W02‑358‑7205, W023777205, W02‑377‑7205 |
| Freightliner | 1840977000, 1852651000, 1873178000, 18‑73178‑000, 660033406, 66003‑3406 |
| Goodyear | 1S5175, 1S5‑175 |
| Volvo | 660033406 |

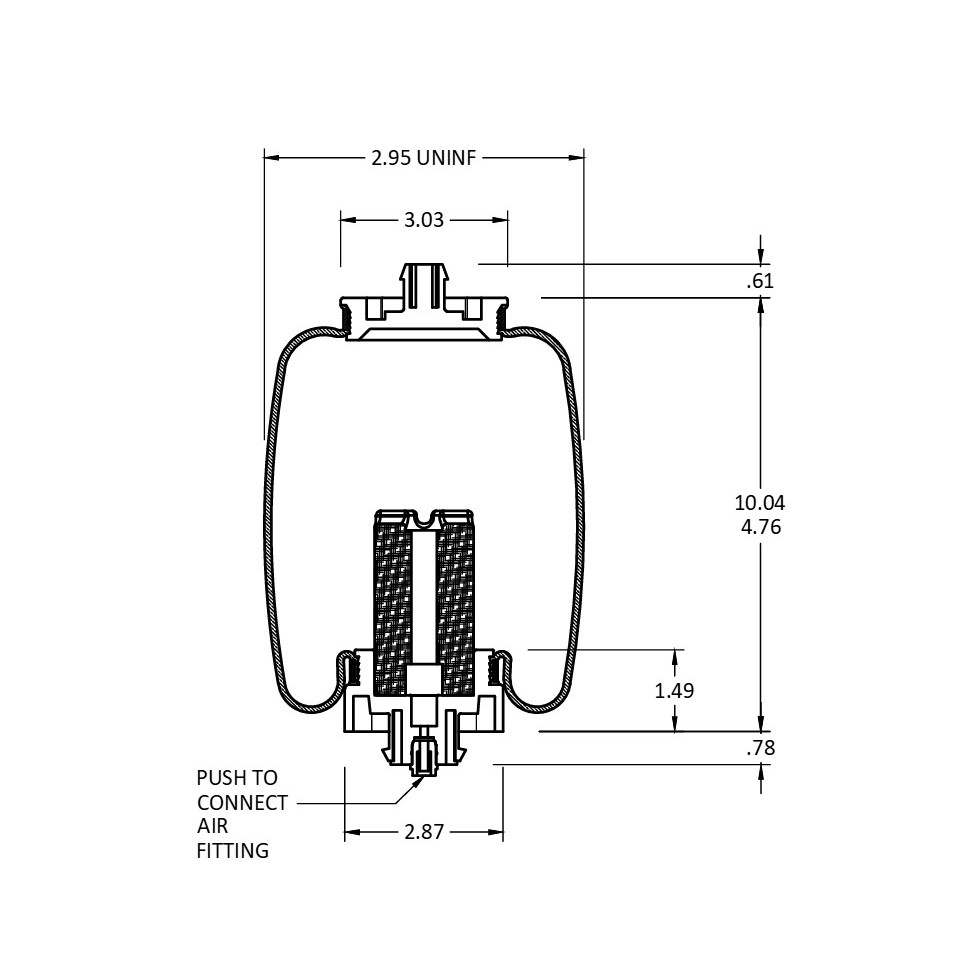

| Property | Value |
|---|---|
| Locating Pin Height | 0.61‑0.78" |
| Air Inlet | Push‑to‑connect air fitting |
| Design Height | 8.5‑10.2" |
| Piston Diameter | 2.87" |
| Minimum Jounce Height | 4.76" |
| Extended Height | 10.04" |
| Compressed Height | 4.76" |
| Weight | 1.23 lbs |
