TR7206 | Cabin Air Spring for Freightliner Trucks
Description : Cabin Air Spring for Freightliner Replaces 18-29919-000, 7206
Part Number : TR7206

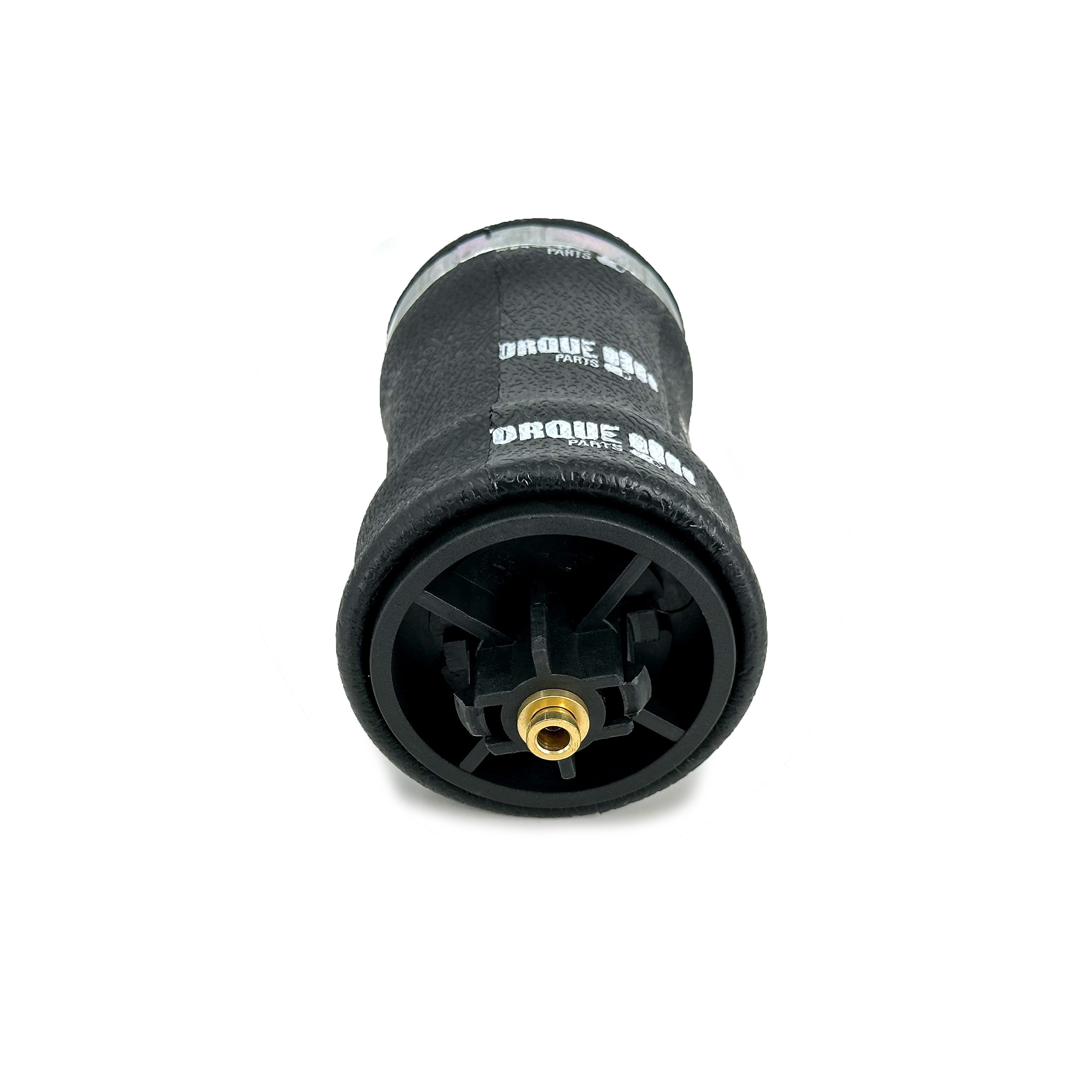

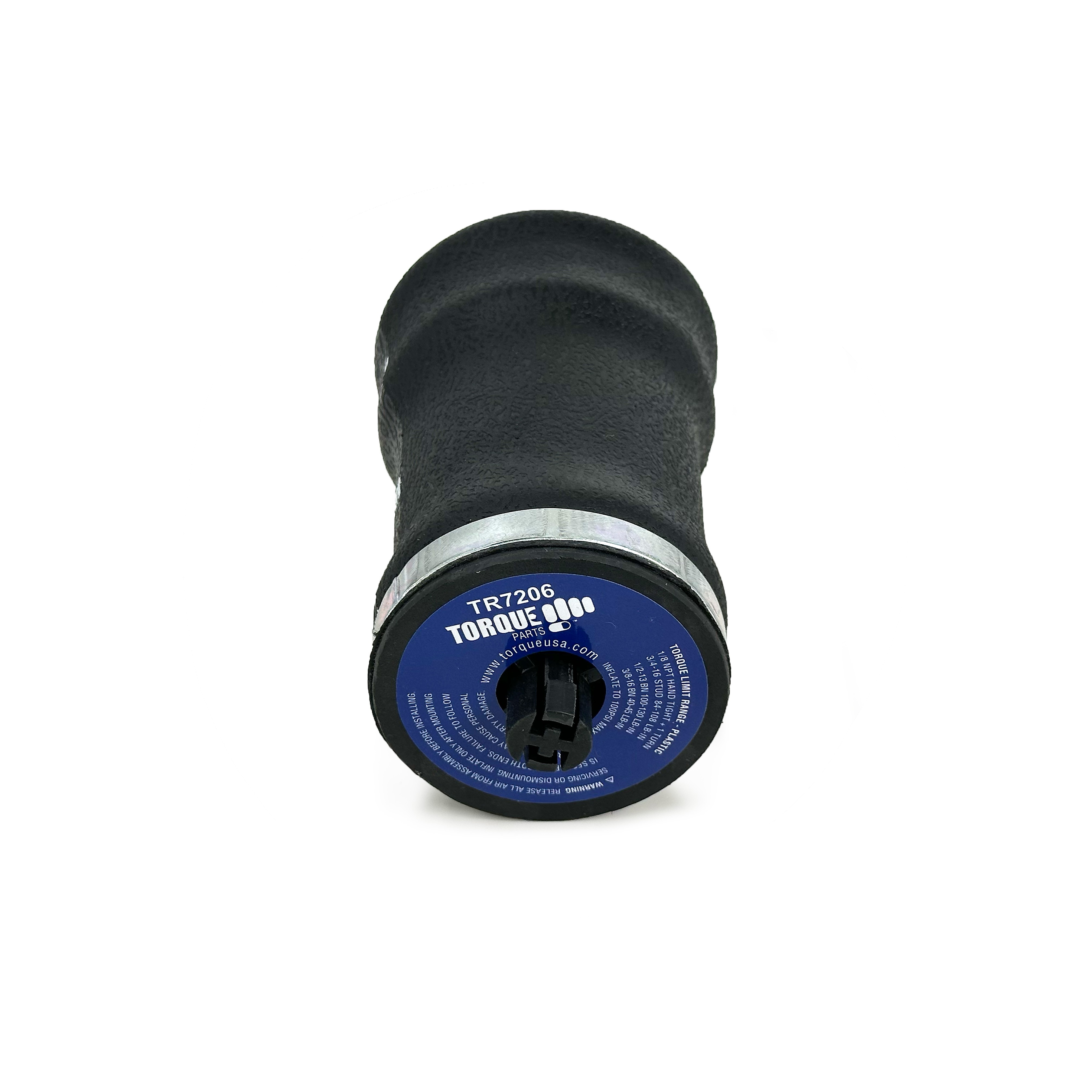

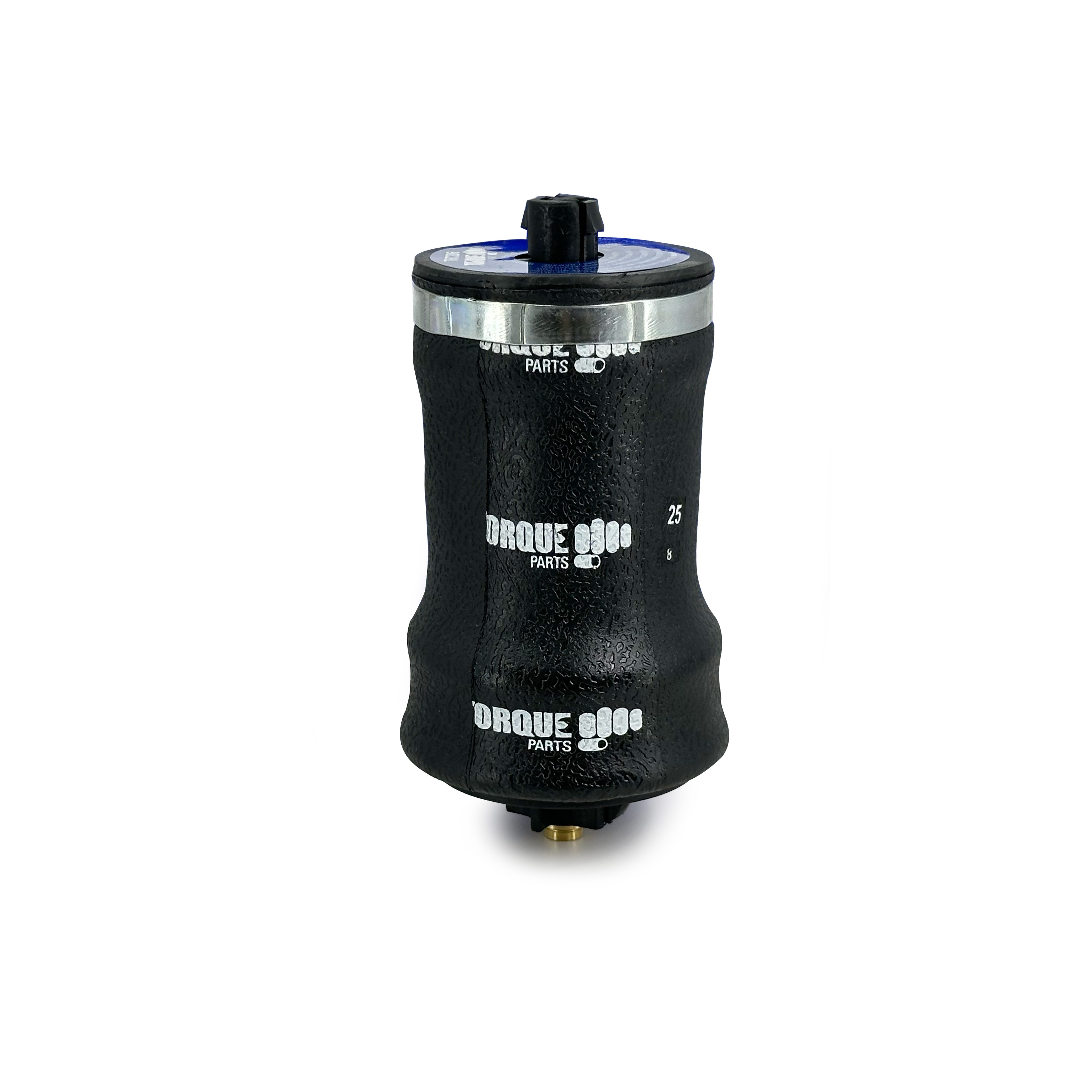

Cabin Air Spring for Freightliner Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7206 |
| Sampa | 500.681‑01 |
| Alliance | ABP N32 027206 |
| Contitech | 67452, SC31W206, SC31‑W206 |
| Firestone | 7202, 7206, PS19371, W023587202, W02‑358‑7202, W023587206, W02‑358‑ 7206, W023777206, W02‑377‑7206 |
| Freightliner | 1829919000, 18‑29919‑000 |
| Goodyear | 1S5176, 1S5‑176 |
| Link | 1102A047 |
| Meritor | FS7206 |

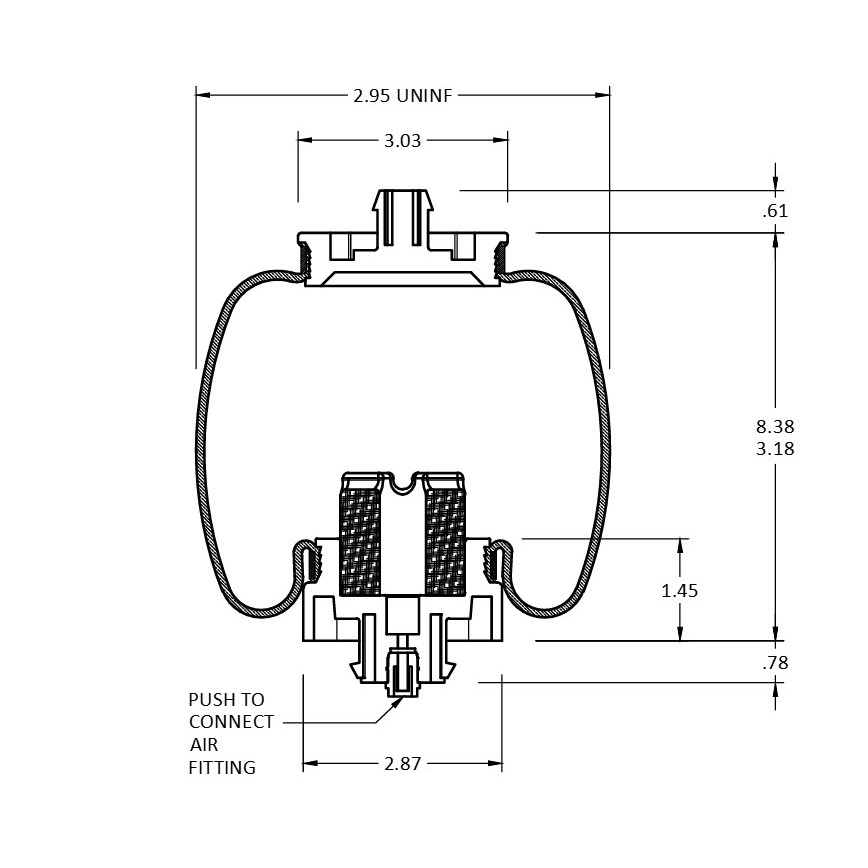

| Property | Value |
|---|---|
| Locating Pin Height | 0.61‑0.78" |
| Air Inlet | Push‑to‑connect air fitting |
| Design Height | 5.51" |
| Piston Diameter | 2.87" |
| Minimum Jounce Height | 3.20" |
| Extended Height | 8.38" |
| Compressed Height | 3.18" |
| Weight | 0.99 lbs |
