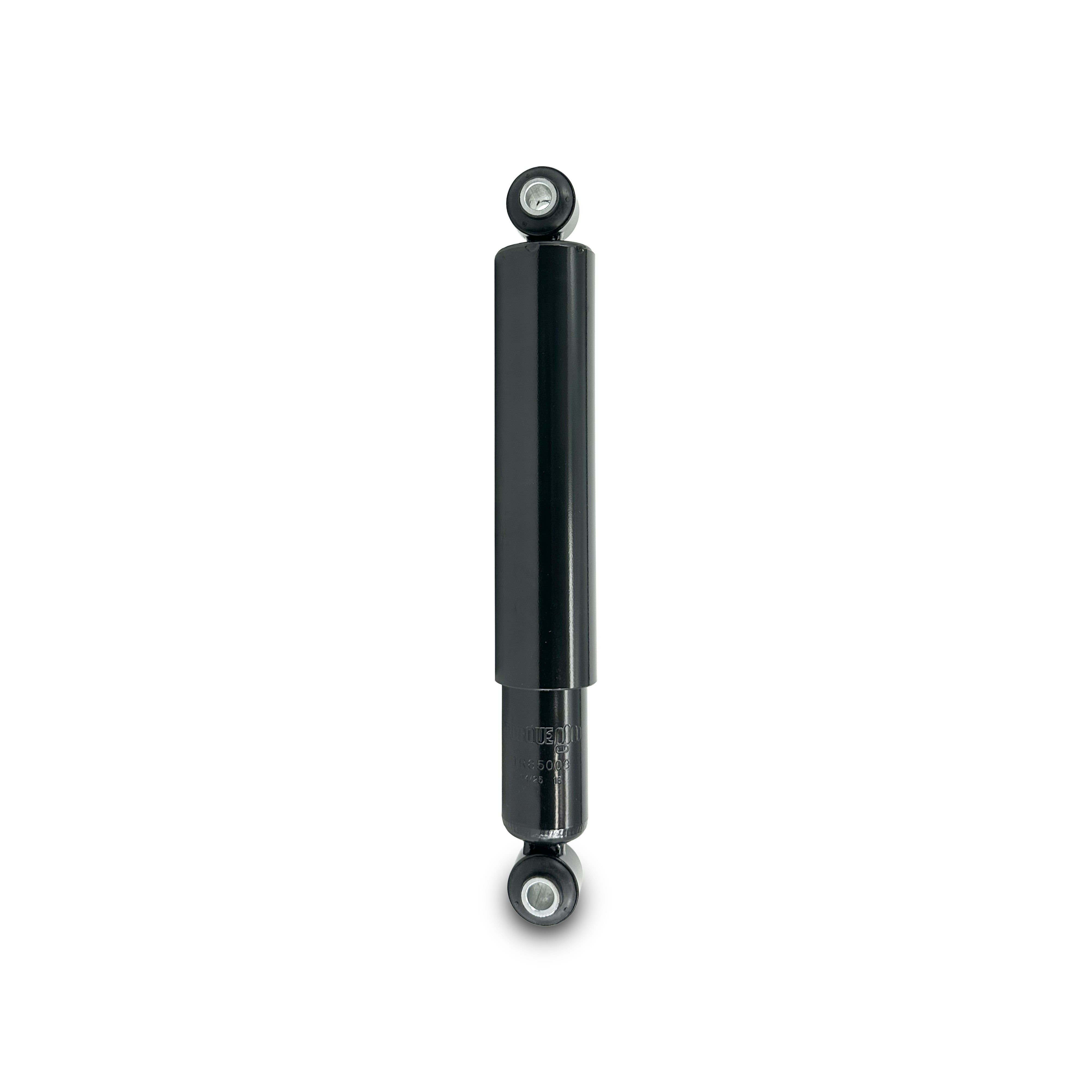

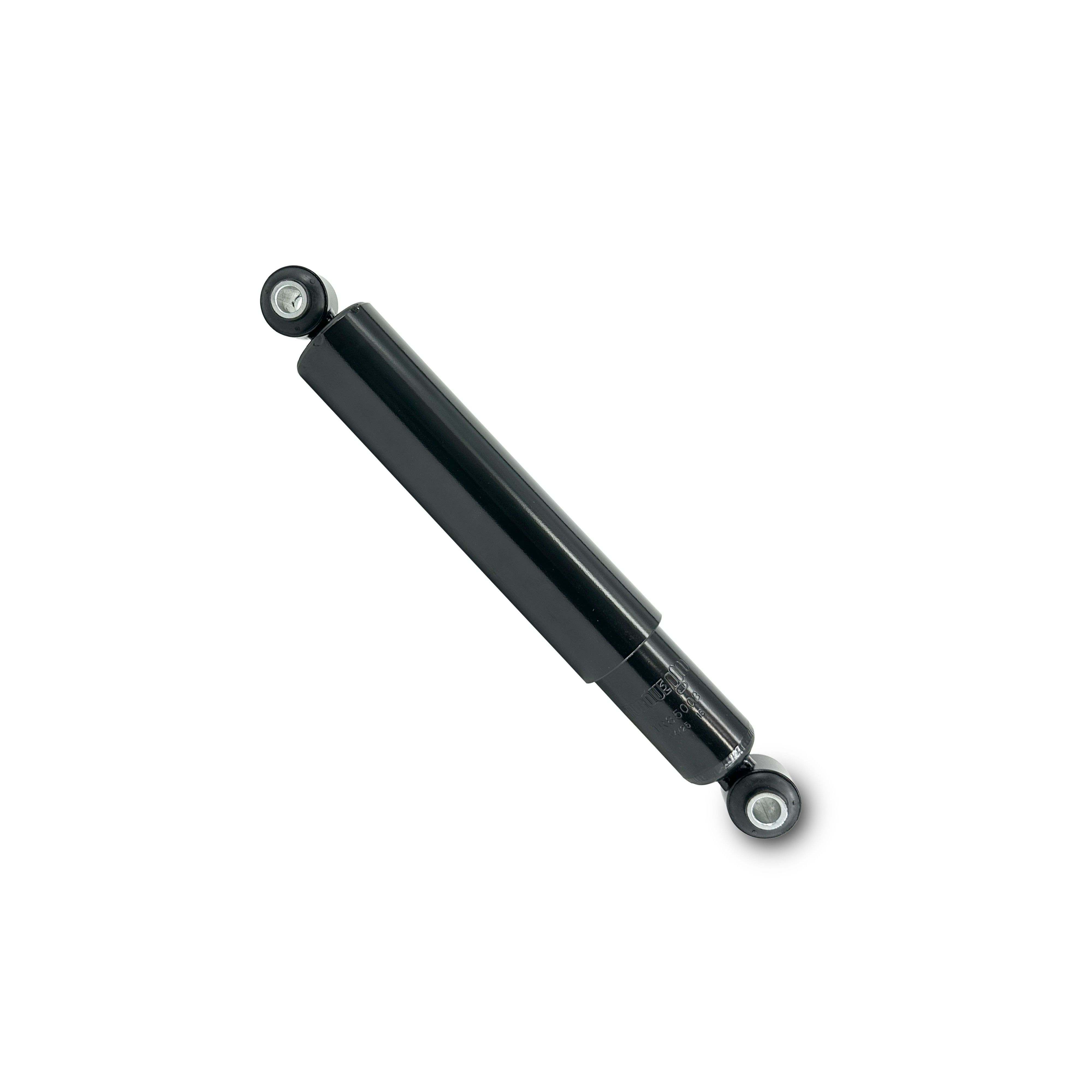

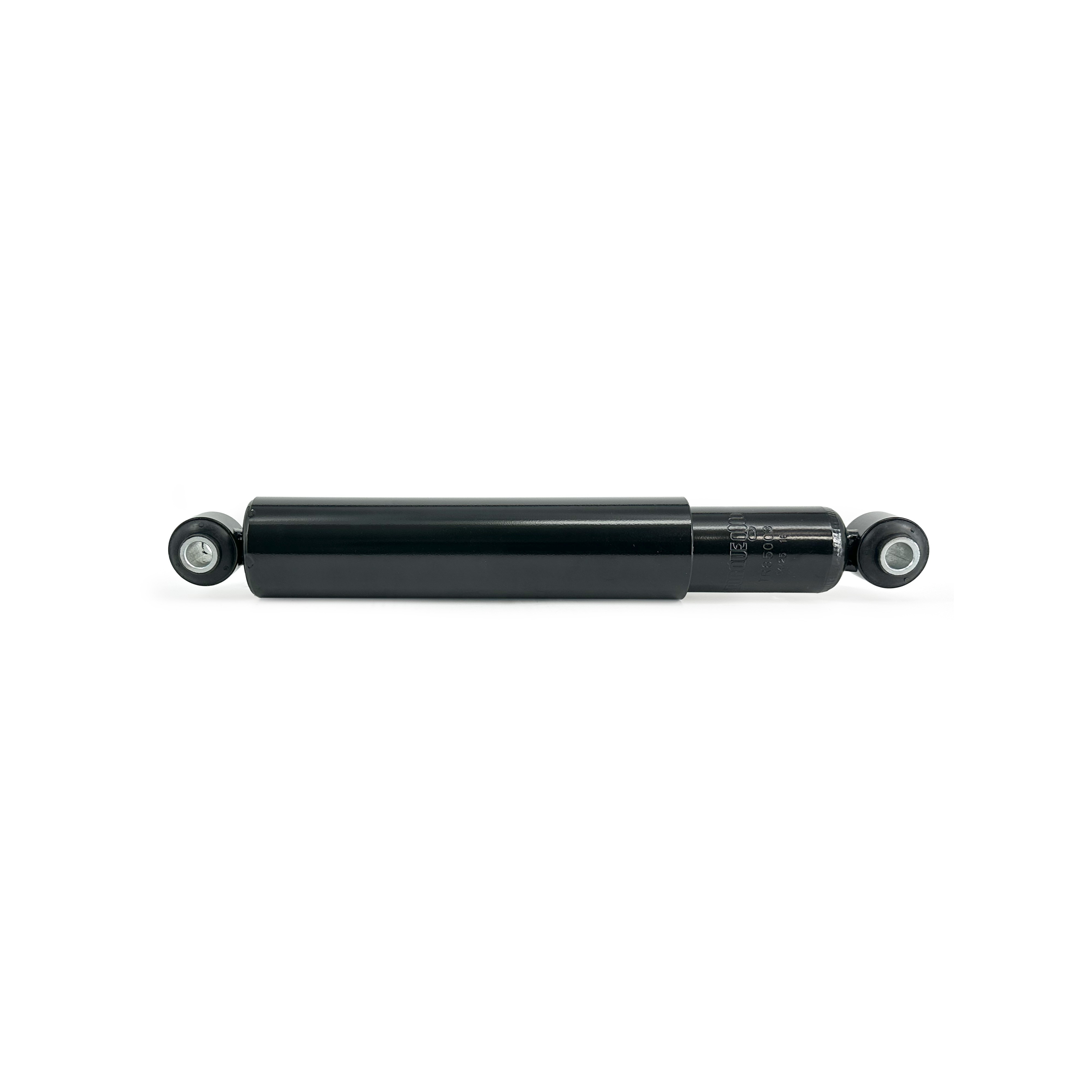

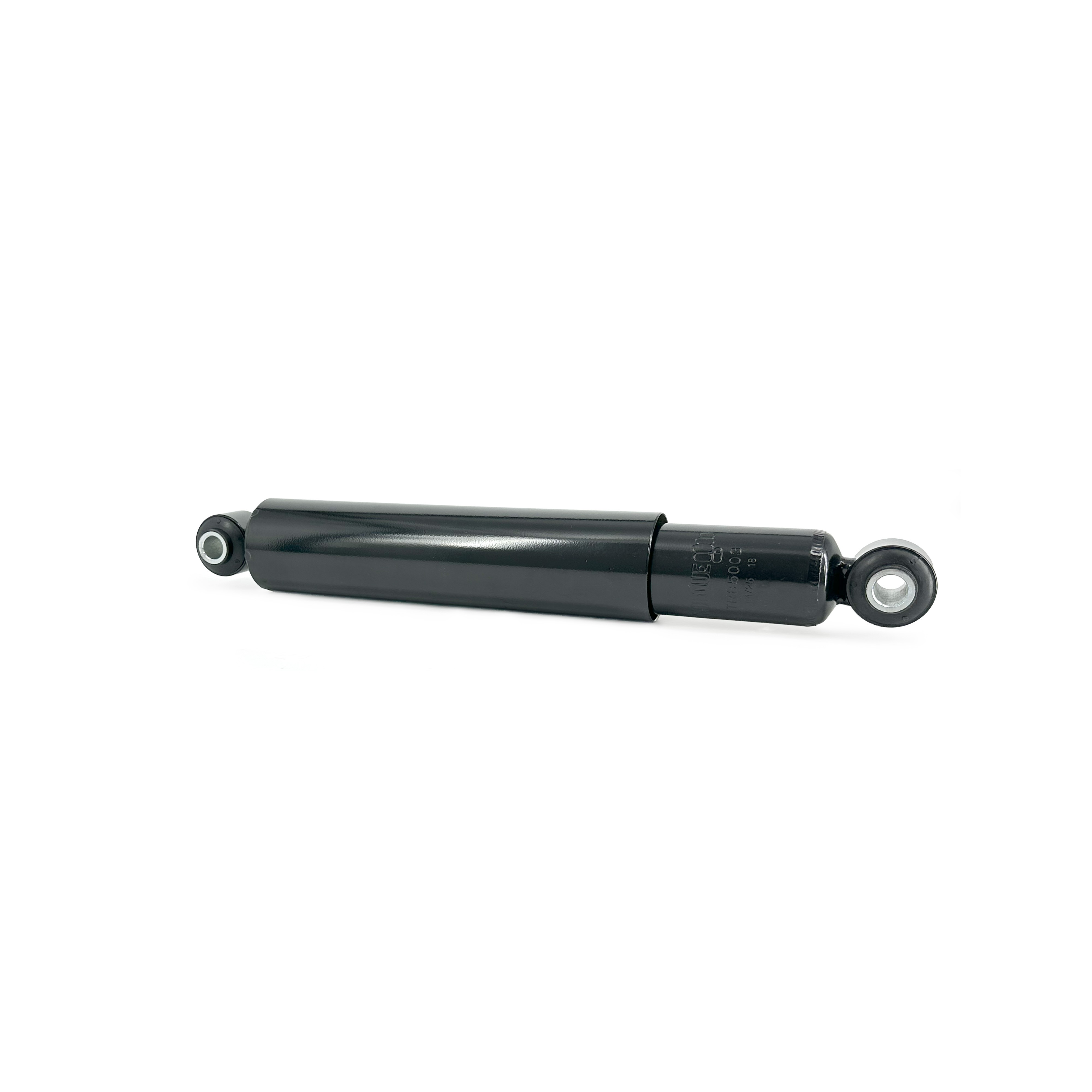

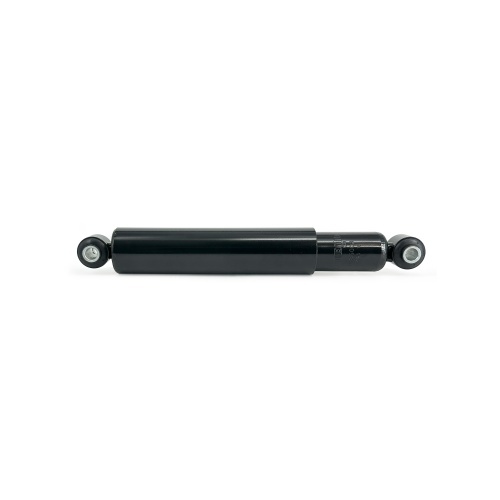

TR85003 | Heavy Duty Shock Absorber for International / Navistar, Kenworth, and Peterbilt Trucks
Description : Shock Absorber for International, Navistar Kenworth and Peterbilt
Part Number : TR85003
Heavy Duty Shock Absorber for International / Navistar, Kenworth, and Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Gabriel | 85003 |
| IHC | 1675455C1, 1690035C1, 2018987C1, 2018987C2, 501553C91 |
| International | 1675455C1 |
| Kenworth | 680281 |
| Marmon | 5113928 |
| Meritor | 85003 |
| Monroe | 65409, 66720, 74420 |
| Reyco | 1740301 |
| Volvo | 1091368 |
| Volvo/White | 1091368 |

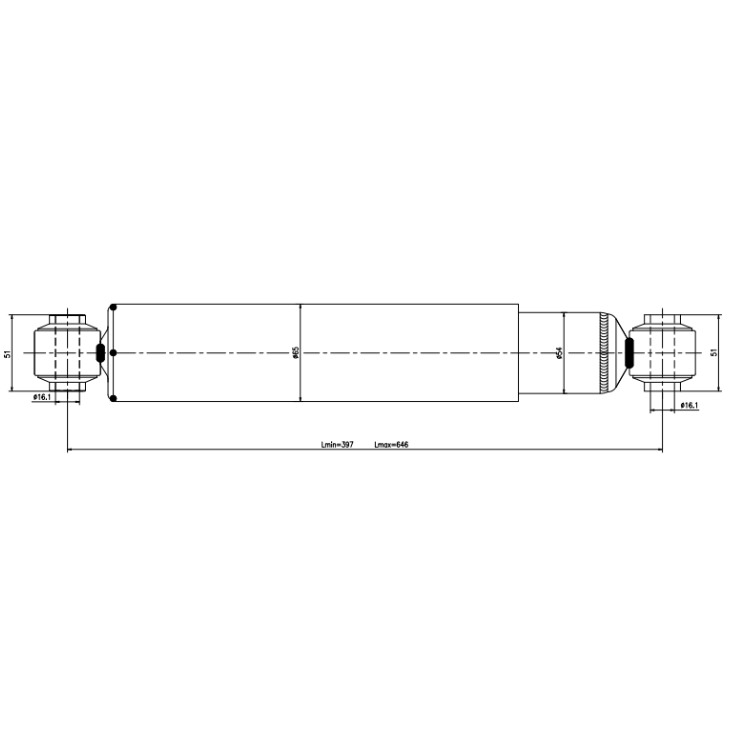

| Property | Value |
|---|---|
| Extended length | 25.42" |
| Collapsed length | 15.63" |
| Stroke | 9.79" |
| Dust tube | Yes |
| Recoil Cutoff | Yes |
| Rebound force | 437 |
| Compression force | 187 |
| Upper Mounting | I.D. 0.63",<wbr> sleeve length 2" |
| Lower Mounting | I.D. 0.63",<wbr> sleeve length 2" |
| Bore | 1‑5/8" |
| Weight | 6.5lbs |
