TR85066 | Heavy Duty Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT Trucks
Description : Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT
Part Number : TR85066
Heavy Duty Shock Absorber for Mack CHN, CX, CXN, and Volvo VN, VNL, VT Trucks
| Brand | Reference Numbers |
|---|---|
| Gabriel | 85066 |
| Mack | 14QK2136M, 14QK3101M, 20897198, 471700000431, 14QK‑3101M, SDA471700000431 |
| Meritor | 85066 |
| Monroe | 65486, 66431, 66486 |
| Volvo | 20433425, 471700000443, 8086651, 20551628 |
| Volvo/White | 20433425, 20551628, 8086651 |
| Sampa: | 502.756 |
| Automann: | 565.ER3021 |

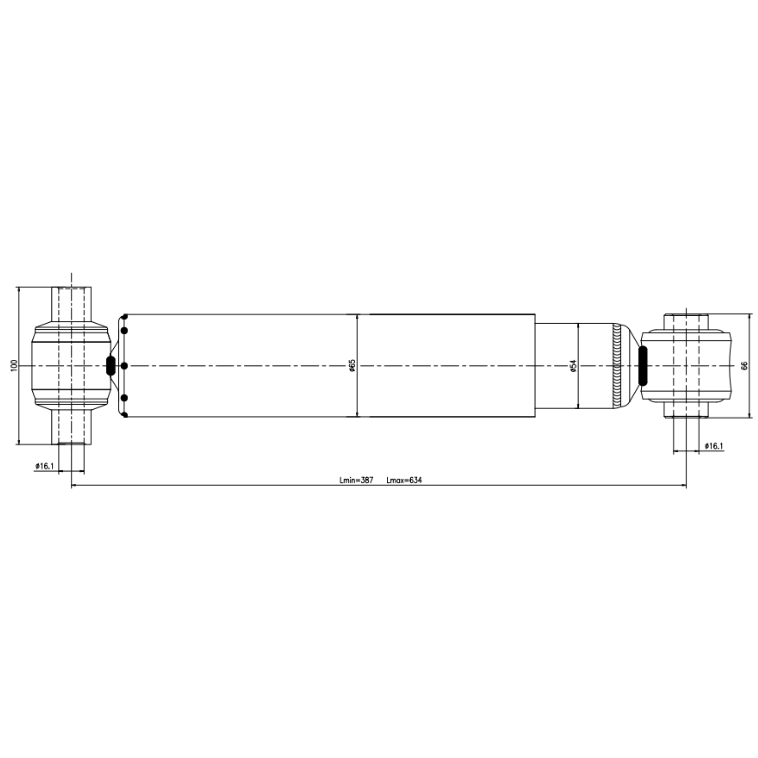

| Property | Value |
|---|---|
| Extended length | 24.64" |
| Collapsed length | 15.25" |
| Stroke | 9.39" |
| Dust tube | Yes |
| Recoil Cutoff | Yes |
| Rebound force | 812 |
| Compression force | 322 |
| Upper Mounting | I.D. 0.63",<wbr> sleeve length 3.95" |
| Lower Mounting | I.D. 0.63",<wbr> sleeve length 2.60" |
| Bore | 1‑5/8" |
| Weight | 8.5lbs |
