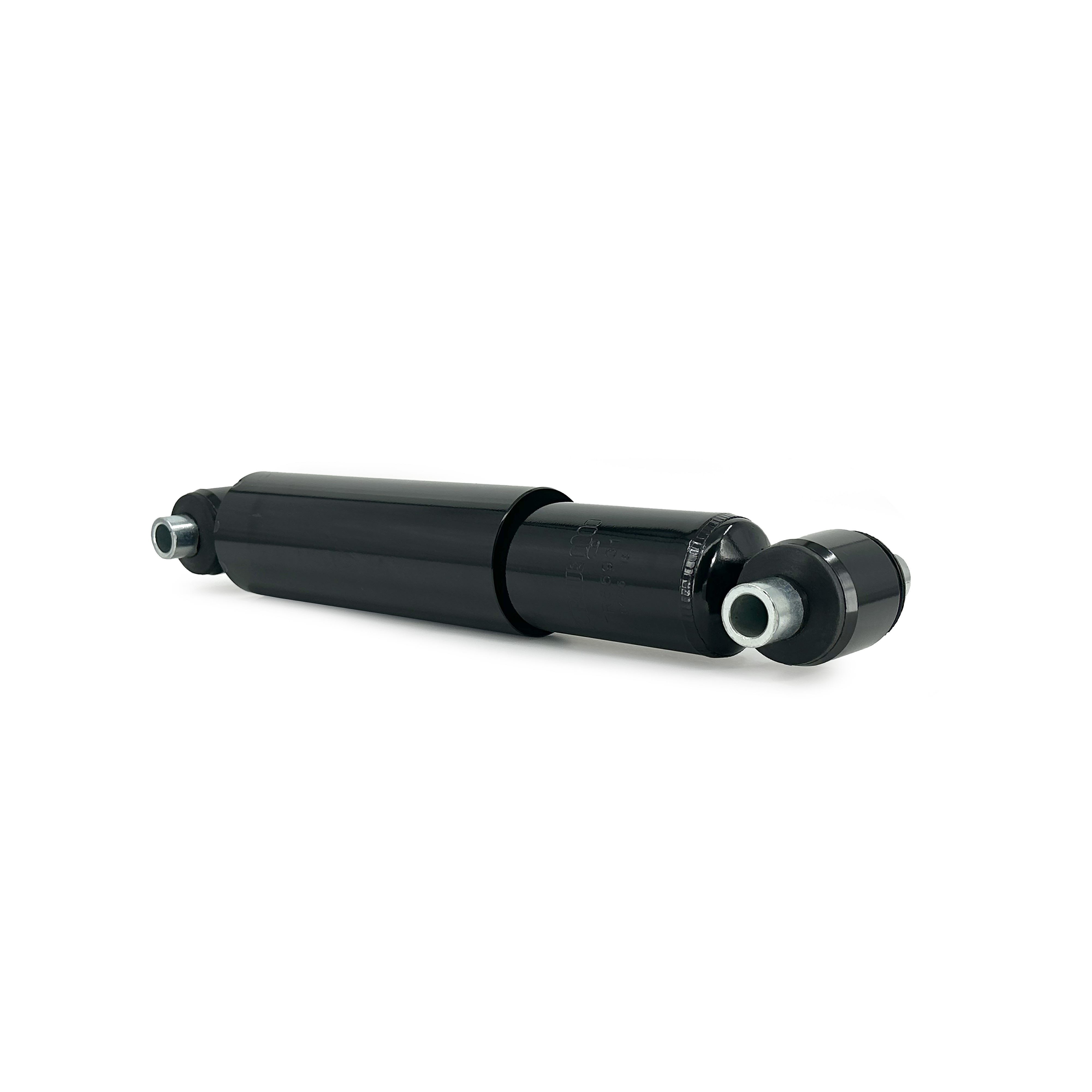

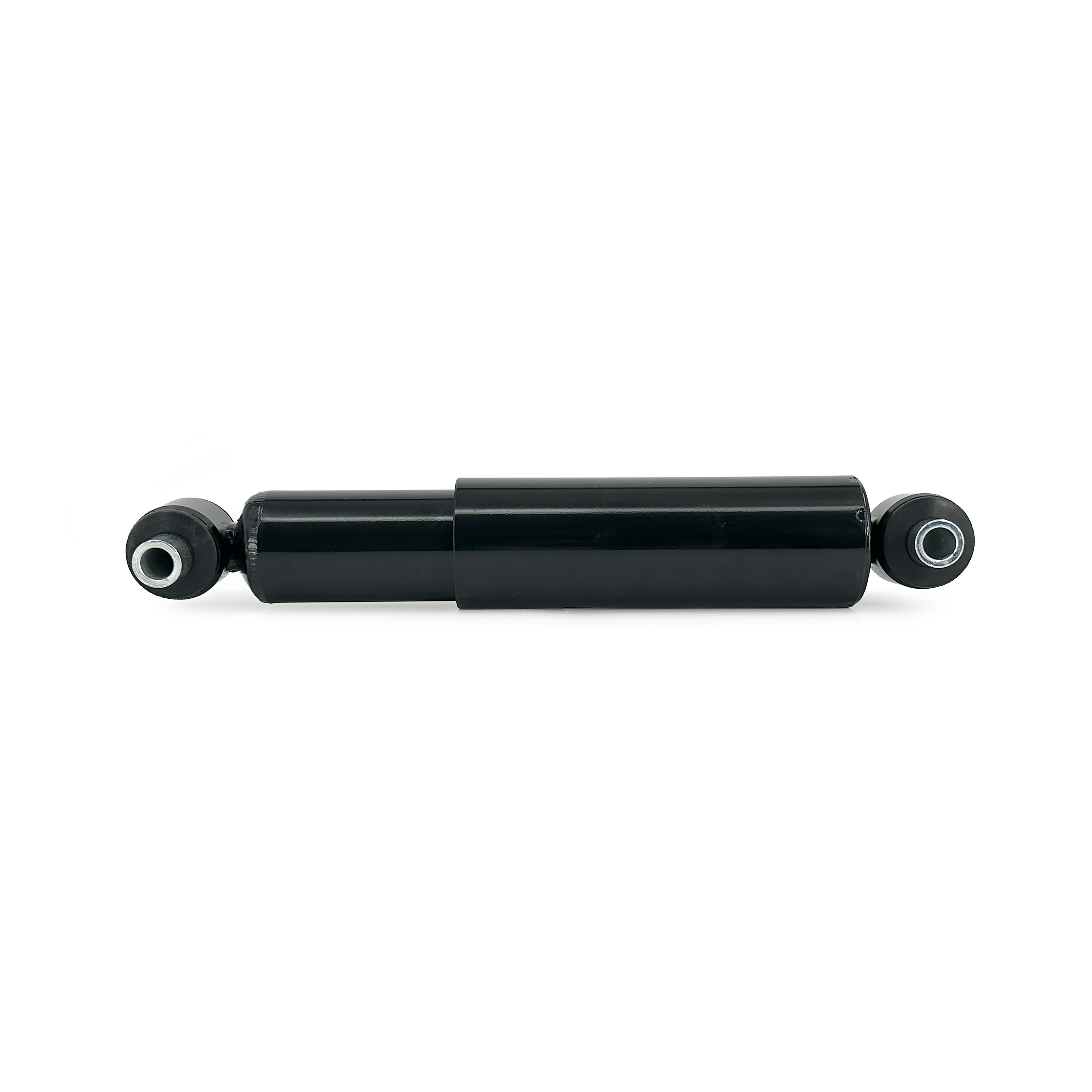

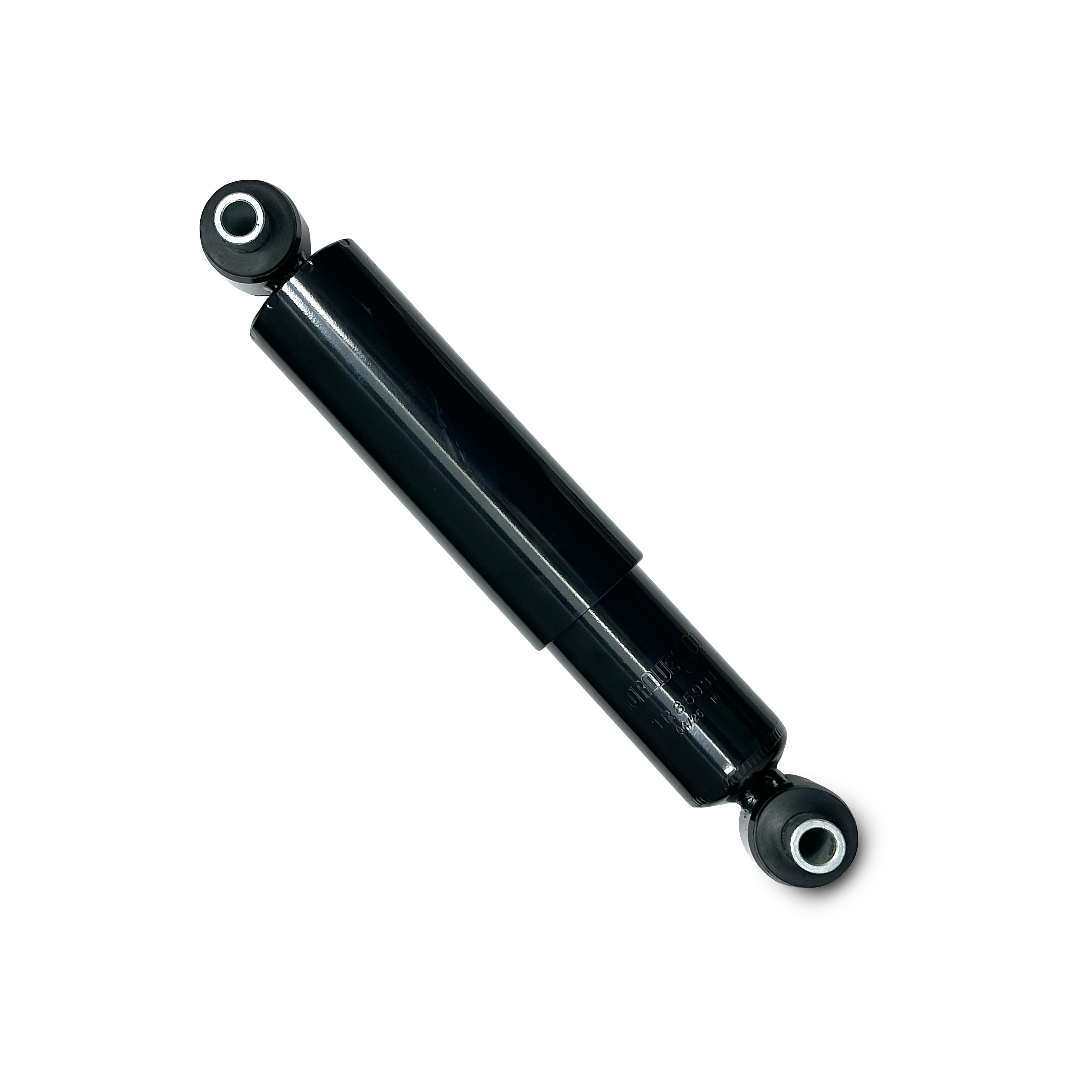

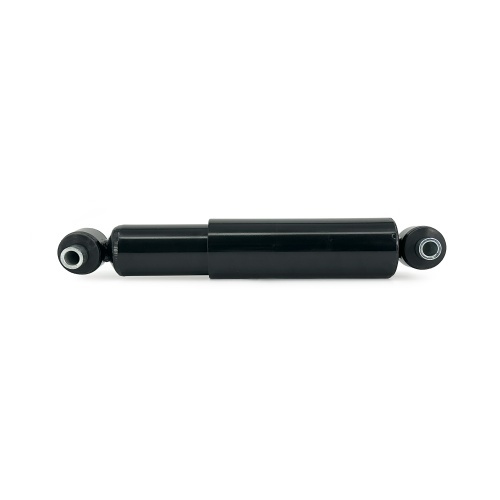

TR85931 | Heavy Duty Shock Absorber for International / Navistar Trucks
Description : Heavy Duty Shock Absorber International/ Navistar Replaces 85
Part Number : TR85931
Heavy Duty Shock Absorber for International / Navistar Trucks
| Brand | Reference Numbers |
|---|---|
| Gabriel | 85931 |
| IHC | 3573265C1, 3586883C1, 3620395C1, 3688729C1, 3821760C1, 4050340C1, 4050340C2 |
| International | 3620395C1, 3737576C1, 3586883C1 |
| Monroe | 65492, 66419 |
| Automann | 565.ER3018 |
| Sampa | 502.817 |

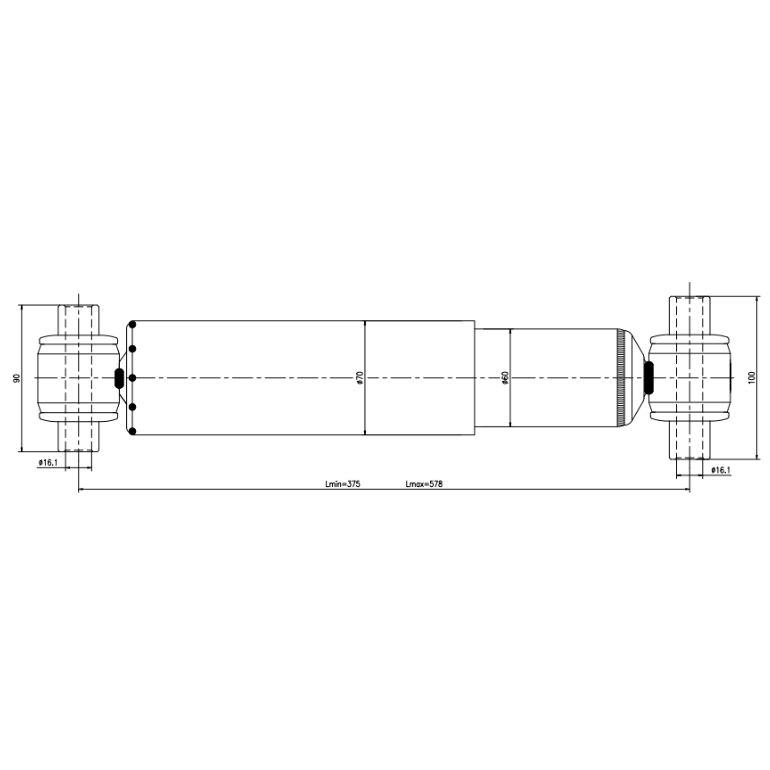

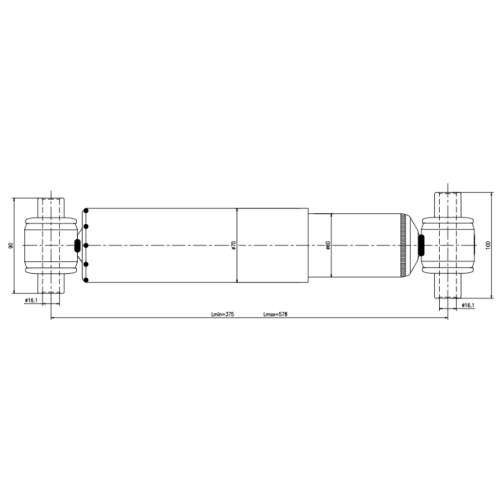

| Property | Value |
|---|---|
| Extended length | 22.52" |
| Collapsed length | 14.52" |
| Stroke | 8" |
| Dust tube | Yes |
| Recoil Cutoff | Yes |
| Upper Mounting | I.D. 0.63" x sleeve length 3.55" |
| Lower Mounting | I.D. 0.63" x sleeve length 3.95" |
| Rebound force | 1036 |
| Compression force | 122 |
| Bore | 1‑5/8" |
