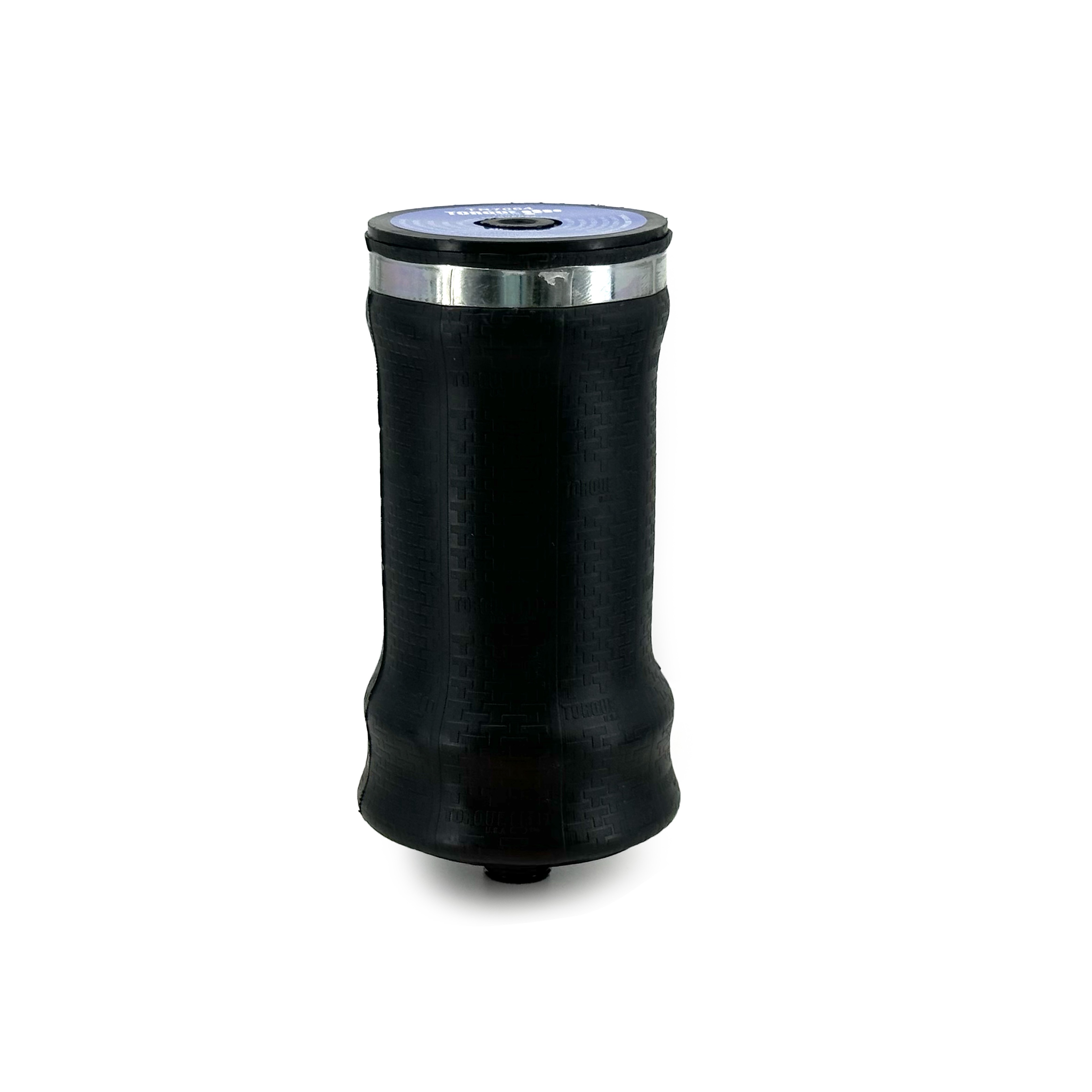

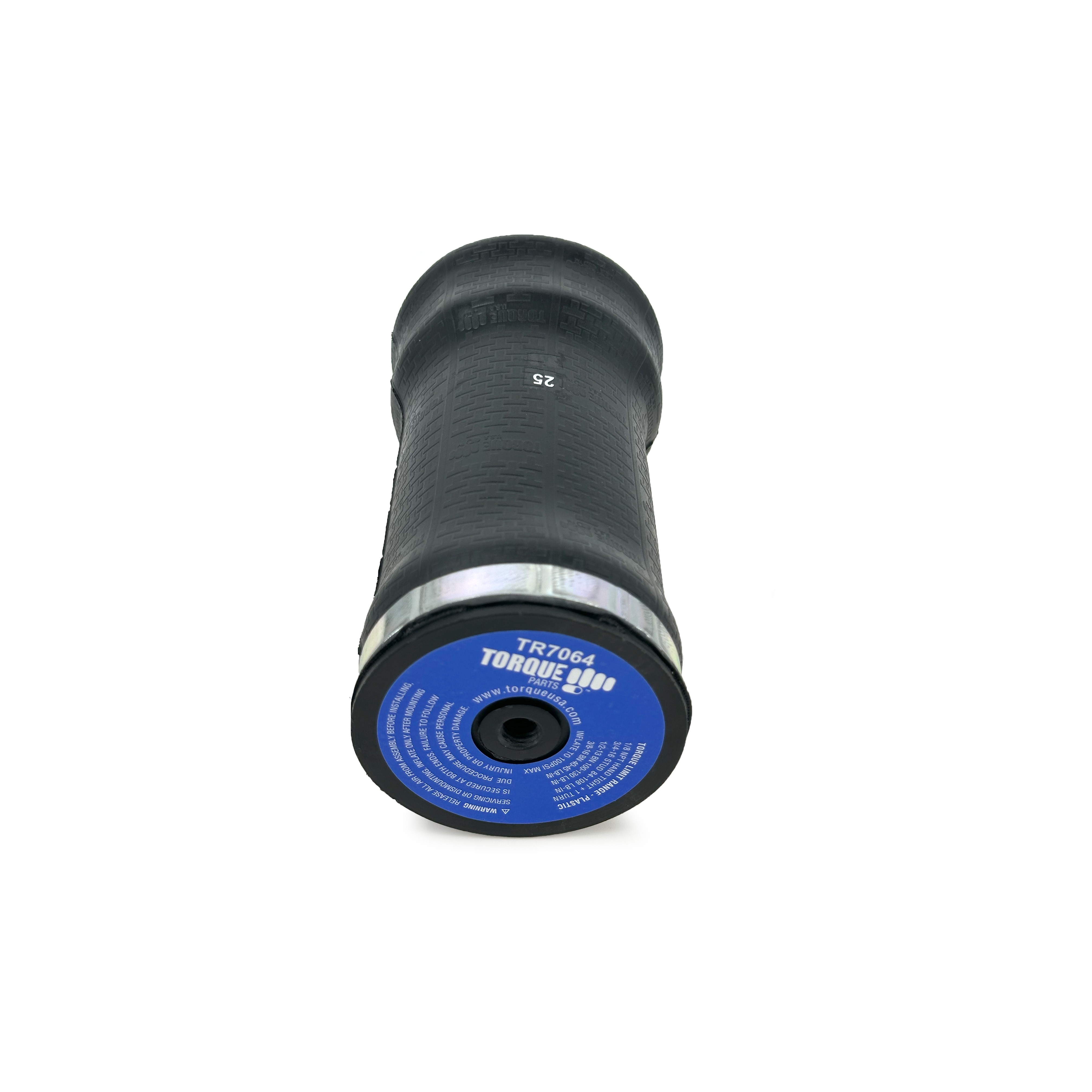

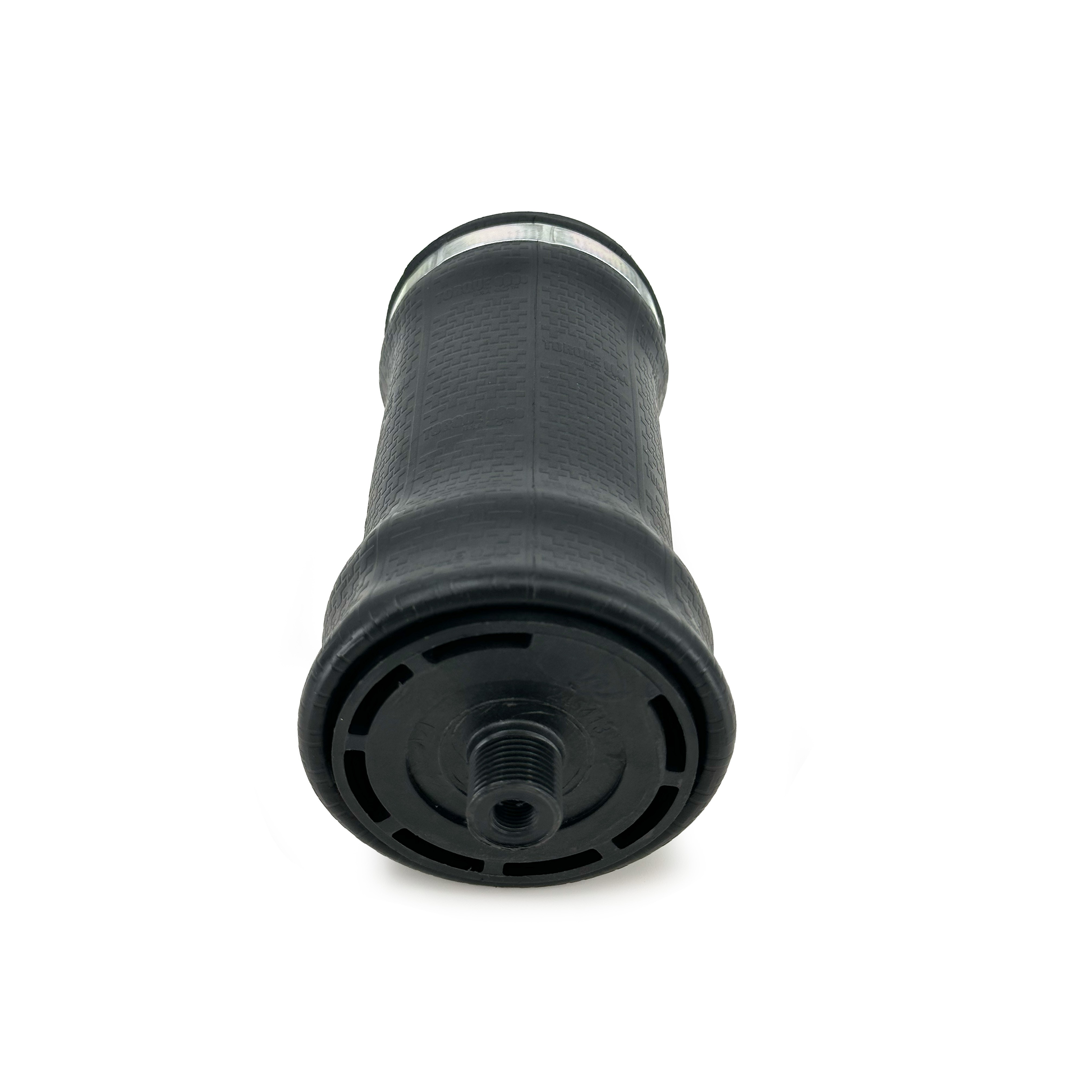

TR7064 | Cabin Air Spring for Kenworth Trucks
Description : Cabin Air Spring for Kenworth Replaces 1102-0074, W02-358-7064
Part Number : TR7064
Cabin Air Spring for Kenworth Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7064 |
| Sampa | 500.905‑01 |
| Contitech | 67768, SC29‑Y064, SZ70‑8077 |
| Firestone | 7064, W023587064, W02‑358‑7064, W026007064, W02‑600‑7064 |
| Goodyear | 1S5157, 1S5‑157 |
| IHC | 1699064C1 |
| Link | 11020074, 1102‑0074 |
| SZ | 708077 |
| Volvo/White | 20315552 |
| Kenworth | 1102‑0074 |
| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.50" deep |
| Air Inlet | 1/8" NPT |
| Design Height | 8.66" |
| Piston Diameter | 2.16" |
| Extended Height | 9.56" |
| Compressed Height | 2.32" |
| Weight | 0.87 lbs |
