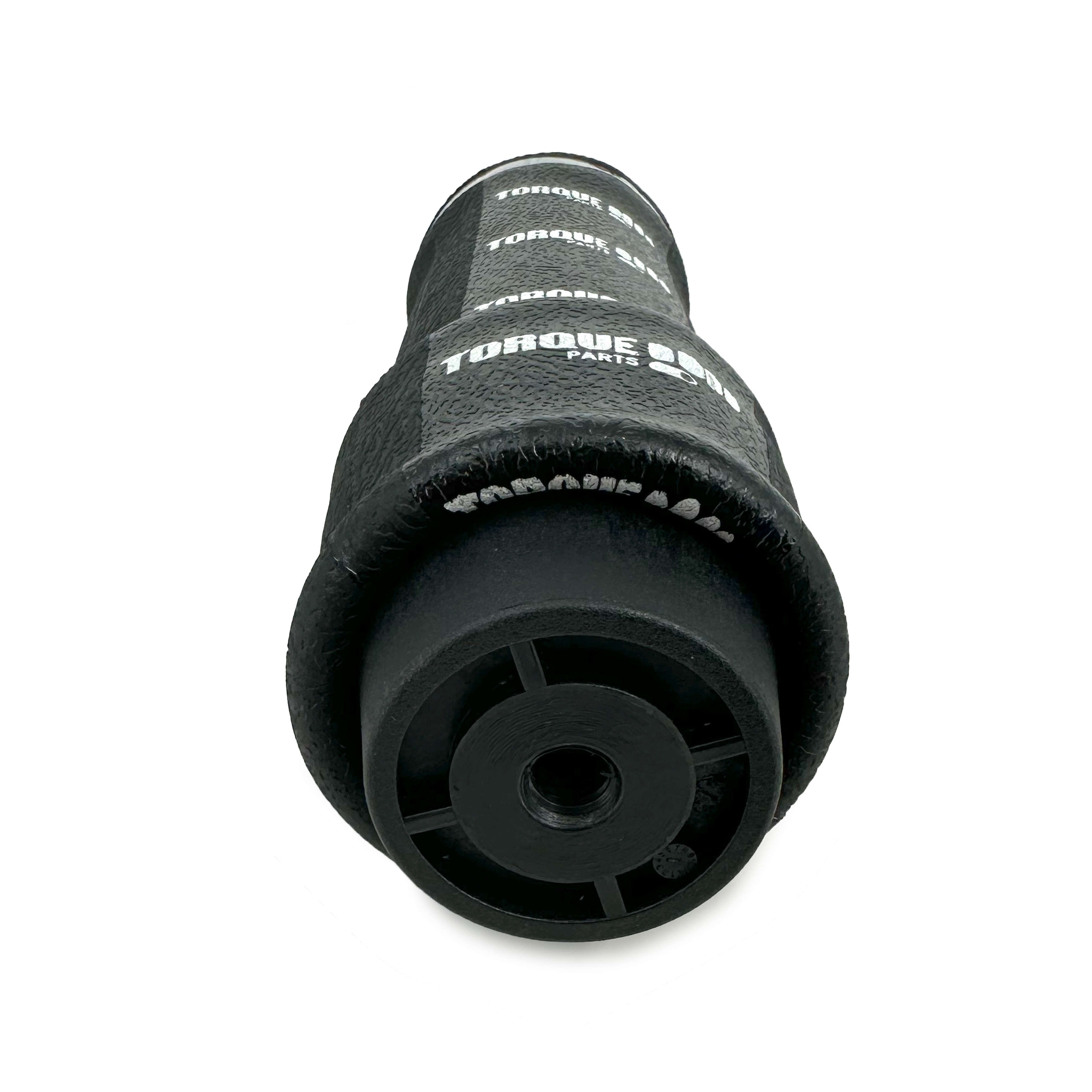

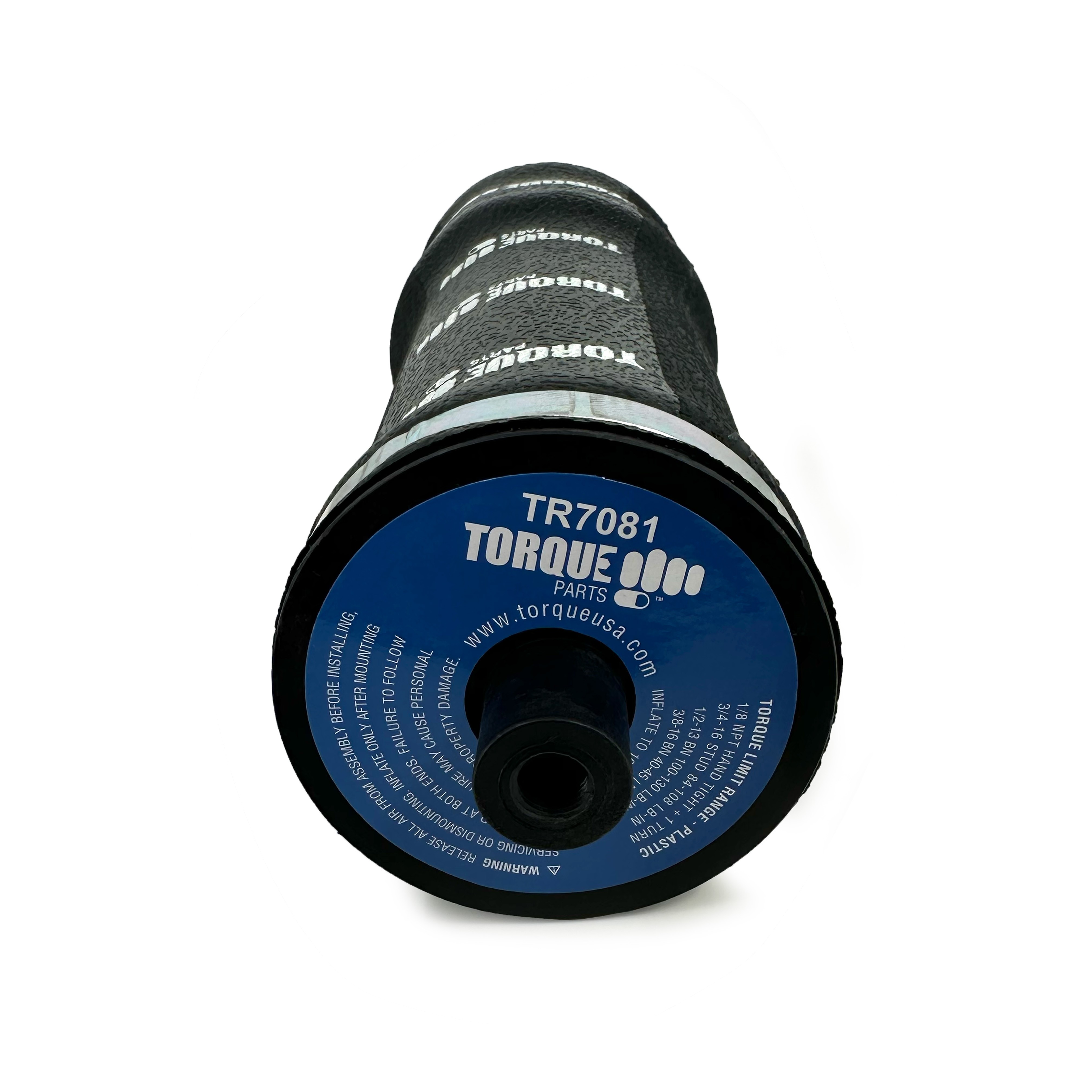

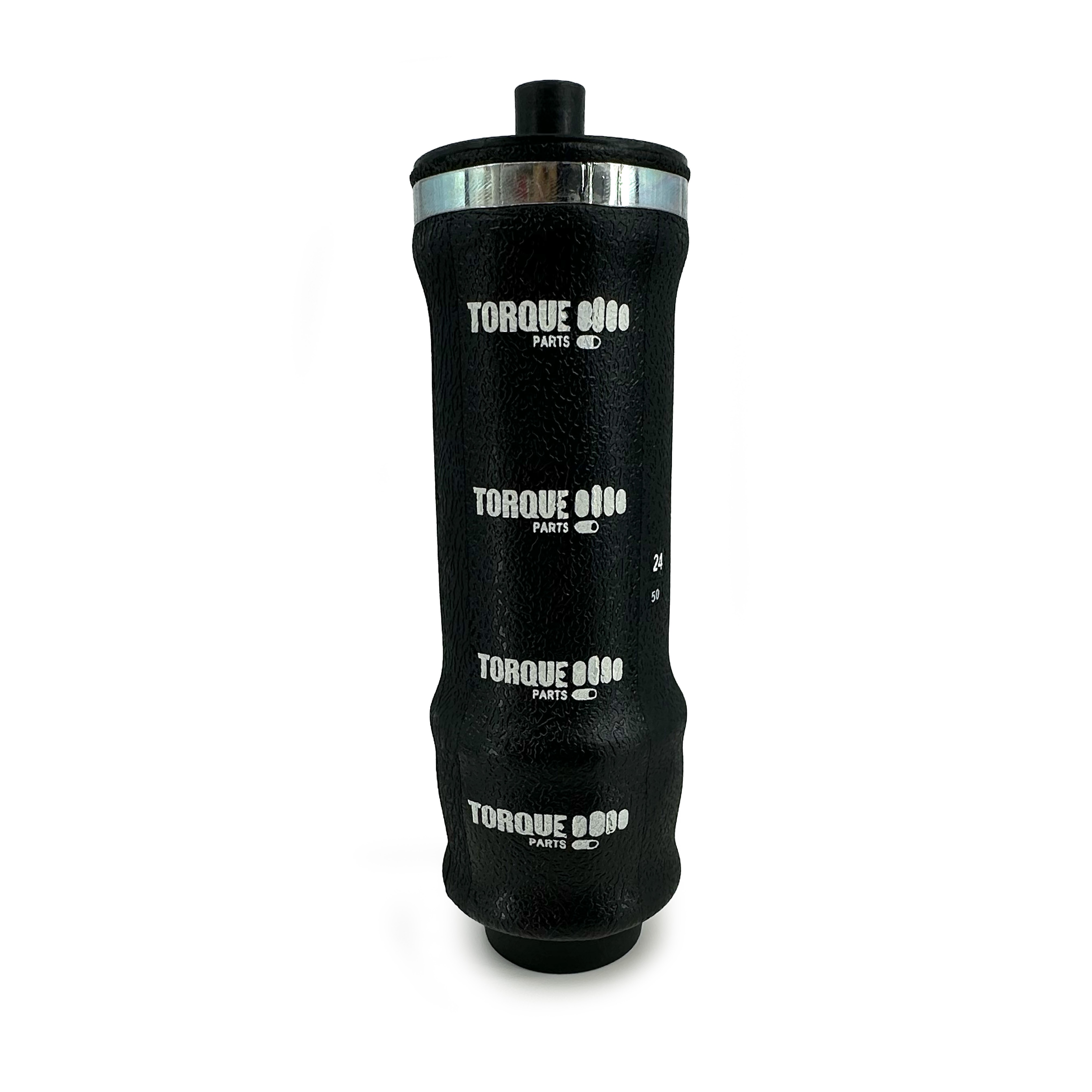

TR7081 | Cabin Air Spring for Navistar/International Trucks
Description : Cabin Air Spring for Navistar/International Replaces W02-358-7081
Part Number : TR7081
Cabin Air Spring for Navistar/International Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | ABSZ70‑7081 |
| Sampa | 500.906‑01 |
| Firestone | 7081, W02‑358‑7081 |
| Goodyear | 1S5‑038, 1S5038 |
| IHC | 2501300C1, 2505126C1 |
| Link | 11010043, 11020076, 1103A043, 2991‑0040, 29910040 |
| Navistar | 2501300C1 |

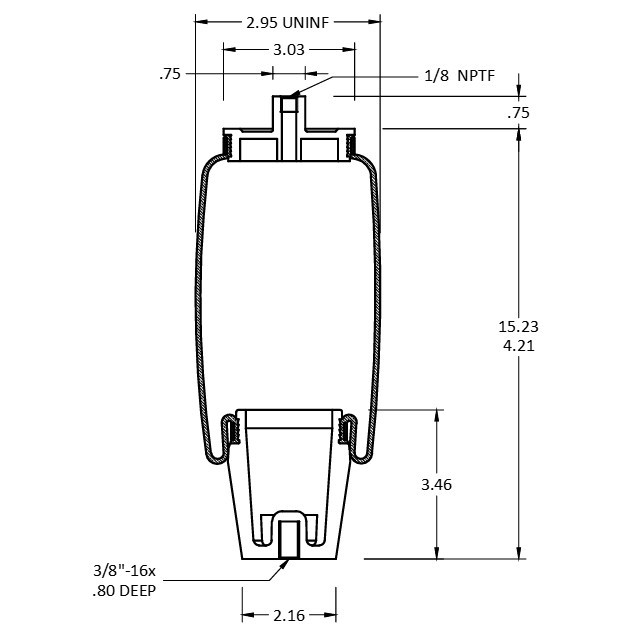

| Property | Value |
|---|---|
| Locating Pin Diameter | 3/8"‑16 |
| Locating Pin Height | 0.80" deep |
| Air Inlet | 1/8" NPTF |
| Design Height | 9.44" |
| Piston Diameter | 2.16" |
| Extended Height | 15.23" |
| Compressed Height | 4.21" |
| Weight | 1.23 lbs |
