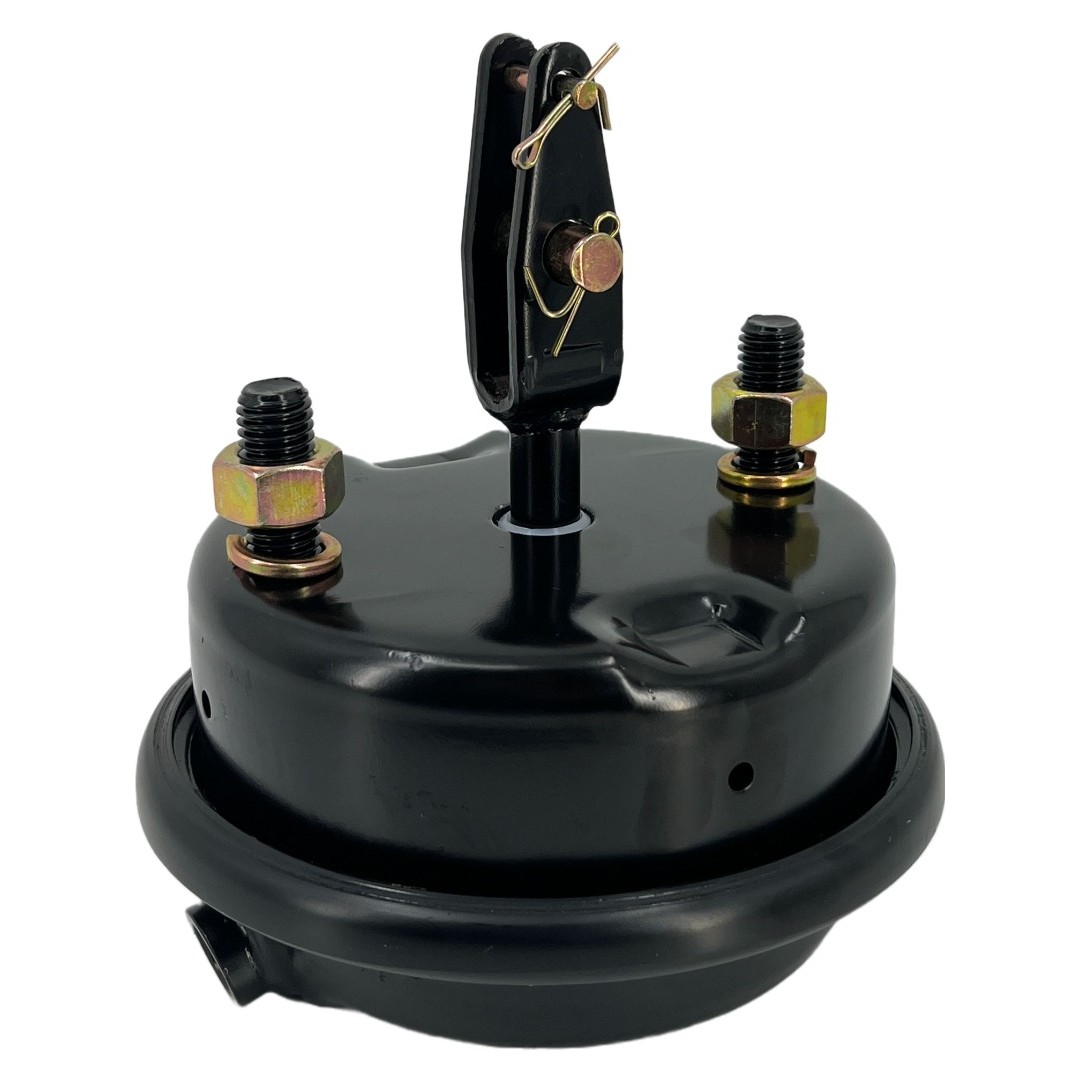

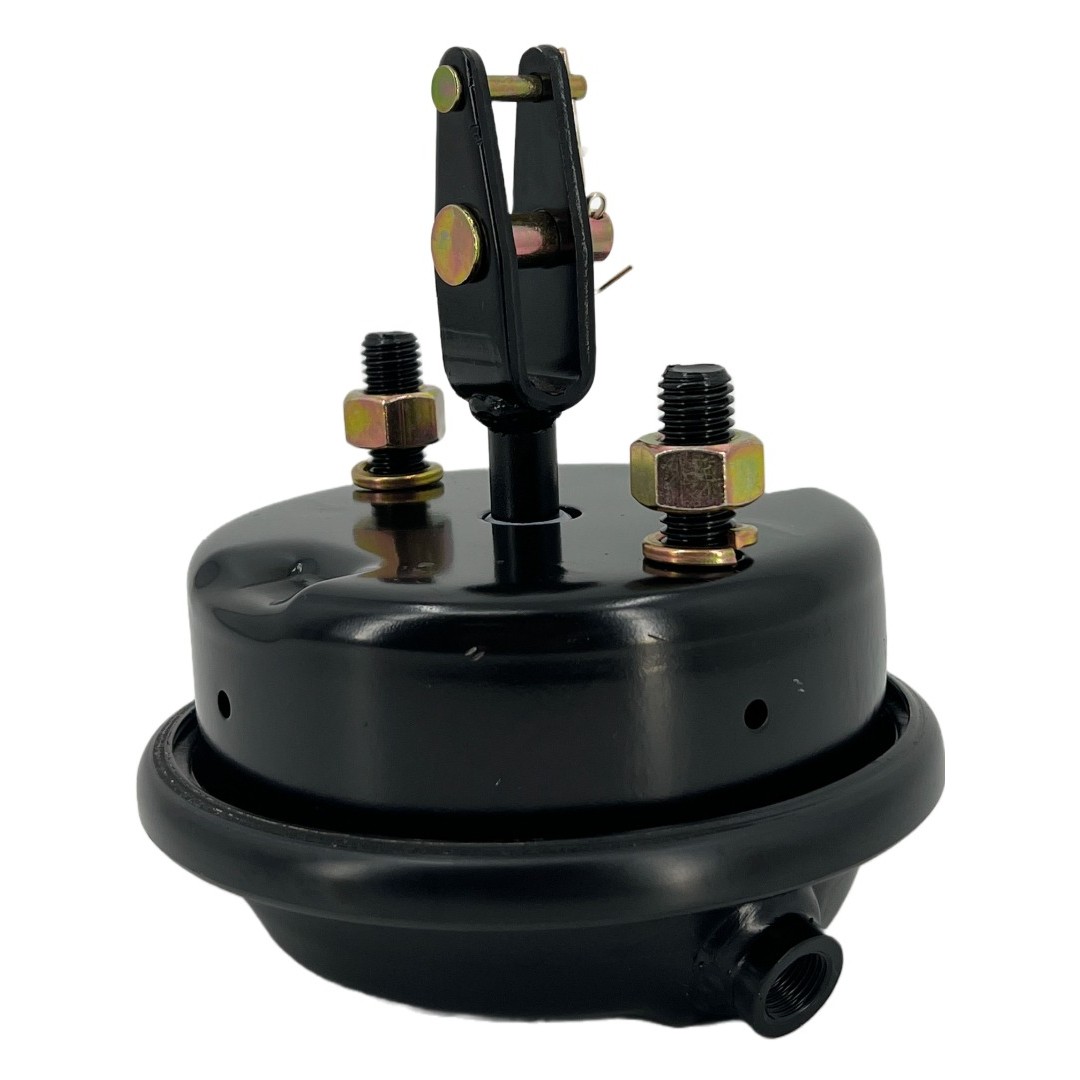

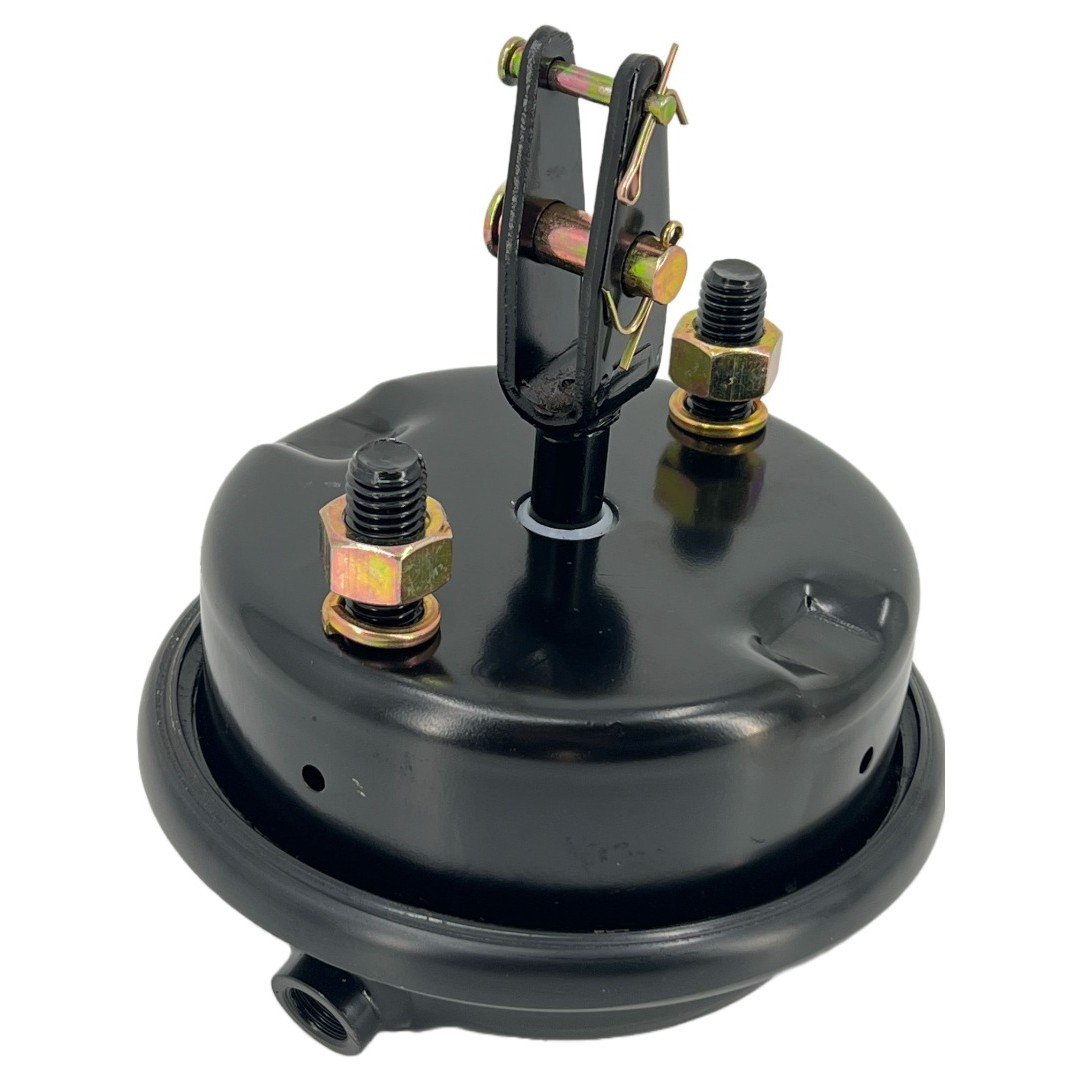

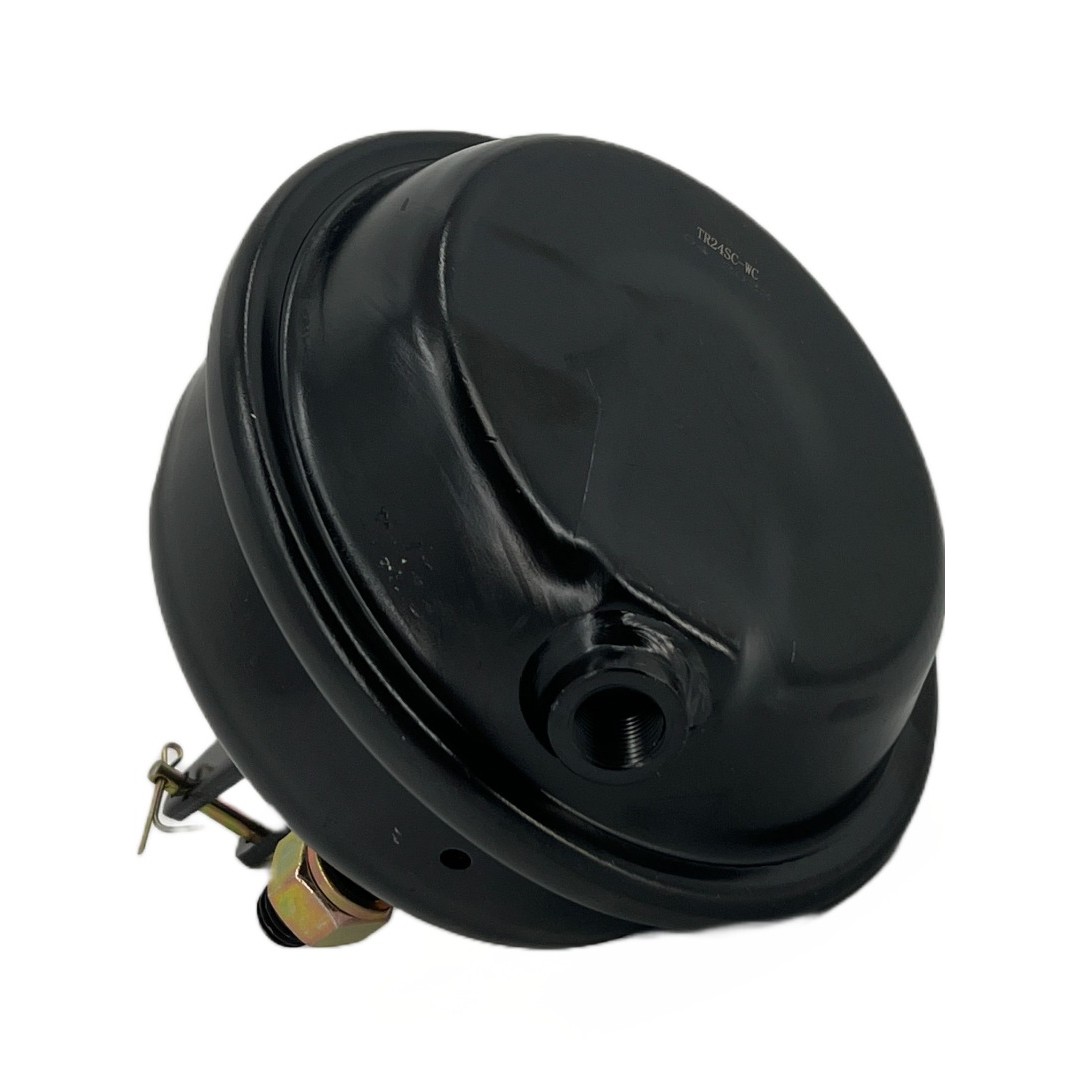

TR24SC-WC | Long Stroke Air Brake Chamber with Welded Clevis Replaces K058691
Description : Long Stroke Air Brake Chamber with Welded Clevis Replaces K058691
Part Number : TR24SC-WC
Long Stroke Air Brake Chamber Service Type 24 with Welded Clevis
| Brand | Reference Numbers |
|---|---|
| Bendix | K058691 |
| MGM | 1427901, 1427902 |
| Automann | 179.M1427901 , 179.SC24XLW225 |
| Property | Value |
|---|---|
| Chamber Type / Size | 24 |
| Service Chamber Joint Type | Double Clamp Band |
| Stud Thread Size | 5/8‑11 UNC‑2A |
| Mounting Stud Length | 1.50 IN (38.1 MM) |
| Stud Spacing | 4.75 IN (120.7 MM) |
| Stroke | 2.50 IN (63.5 MM) |
| Push Rod Length (to Yoke Pin Center when Applicable) | 3.90 in |
| Service Port ‑ Side | 3/8‑18 NPT |
| Service Port ‑ Center | 3/8‑18 NPT (Plugged) |
| Port Angle | 0° |
| Clamp Angle | 0° |
| Clevis / Yoke Style | Welded |
| Clevis / Yoke Arm Bushing Pin Diameter | 0.50 IN ( 12.7 MM) |
| Clevis / Yoke Arm Link Pin Diameter | 0.25 IN ( 6.35 MM) |
| Clevis / Yoke Pin Spacing | 1.30 IN (33 MM) |
| Maximum Operating Temperature | 175 °F (79 °C) |
| Minimum Operating Temperature | ‑45 °F (‑43 °C) |
