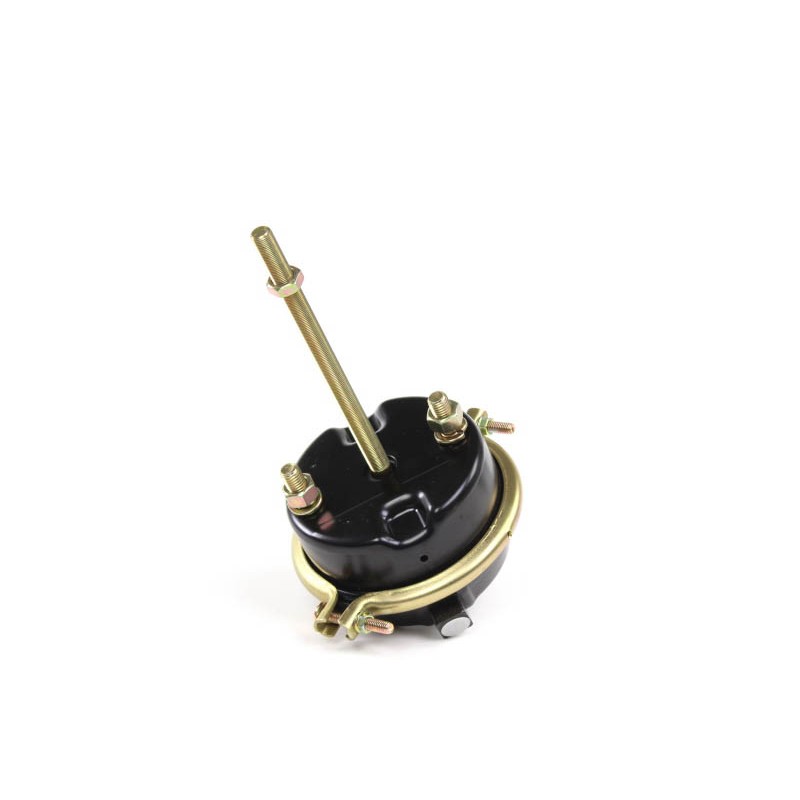

TR24SC | Air Brake Chamber Replaces 800825
Description : Air Brake Chamber Replaces 800825
Part Number : TR24SC
Air Brake Chamber Service Type 24
| Brand | Reference Numbers |
|---|---|
| Bendix | 800825, 802986, 236667, 288808 |
| BWP | M458 |
| Euclid | E24S, EBC24S, E‑BC24S |
| Mack | 19QE486 |
| Midland‑Grau | KN36240 |
| New Star | S‑9815 |
| PAI | HSC‑0224‑100 |
| Tectran | 150‑240 |
| Wagner | AC22380, AC22381 |
| Property | Value |
|---|---|
| Actuator Type Size | 24 |
| Stroke Type | Standard |
| Available Stroke | 2‑1/4",<wbr> 57mm |
| Length from mounting bracket to end of Spring Housing | 3‑3/4",<wbr> 97mm |
| Dimension at Service Clampband | 9‑3/8",<wbr> 239mm |
| Stud Spacing with 5/8‑11 UNC studs | 4‑3/4",<wbr> 120.7mm |
| Pushrod Length from face of Service Housing: | 10‑1/4" |
| Pushrod threads | 5/8"‑18 UNF |
| Service Clampband position | 0° |
| Air Port position | 90° |
| Weight | 8.6 lbs. ,<wbr> 3.9 kg. |
