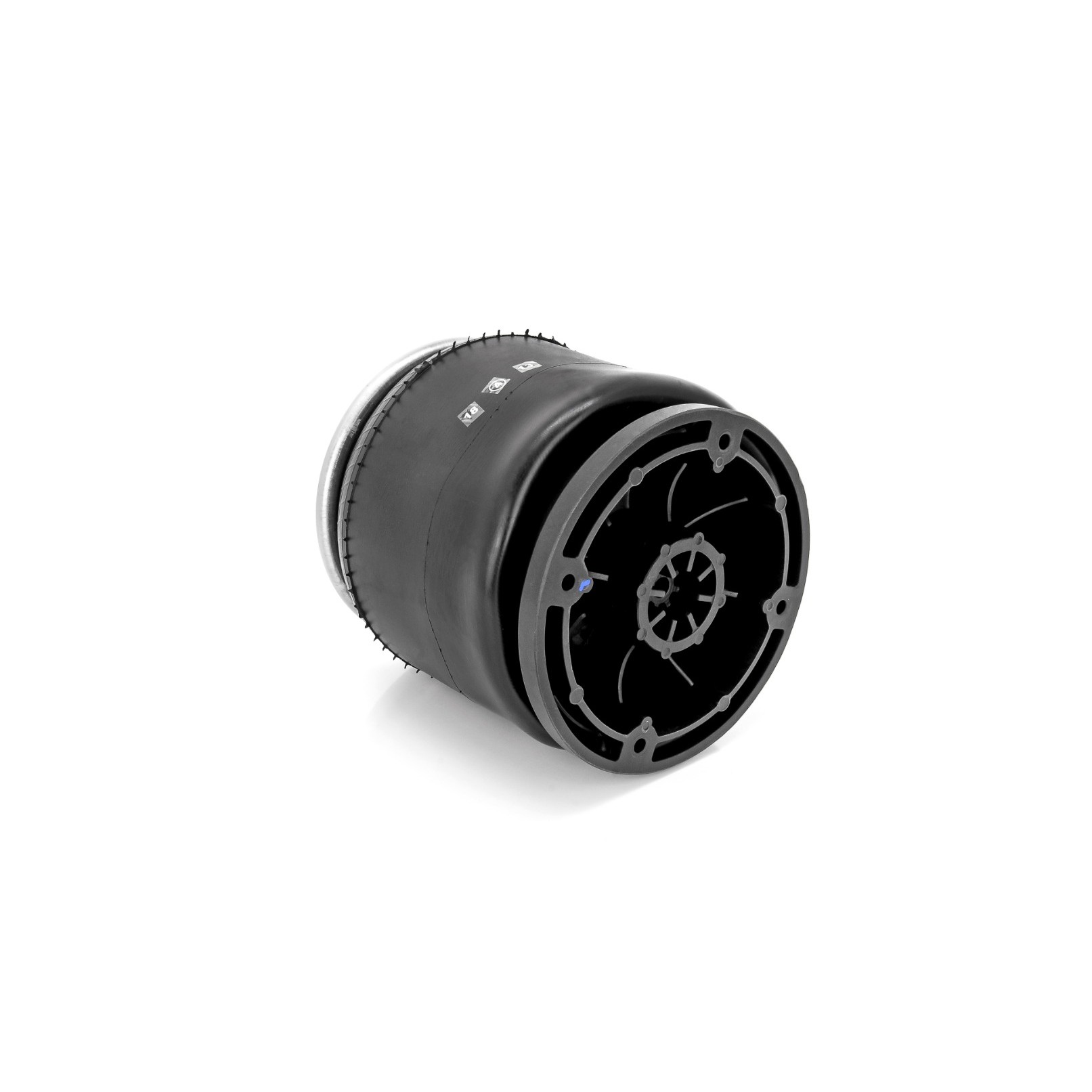

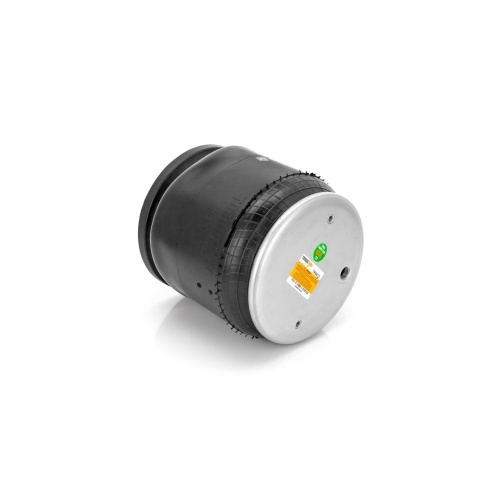

TR8813 | Plastic base - Truck Air Spring, Peterbilt, Replaces C81-1012, C81-1003, 1R12-1204
Description : Air Spring for Peterbilt Replaces C81-1012, C81-1003, 1R12-1204
Part Number : TR8813
Air Spring for Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Automann | 566.ER8813 |
| Alliance | ABP N32 019069 |
| Contitech | 65990, 910‑14P577, 910‑14 P 312 |
| Dayton | 352‑9069 |
| Firestone | 8812, 8813, 8814, W013588813, W01‑358‑8813, W015448812, W01‑544‑8812, W015448813, W01‑544‑8813, W015448814, W01‑544‑8814, W017038812, W01‑703‑8812, W017038813, W01‑703‑8813, W017038814, W01‑703‑8814, W01‑358‑9069 |
| Goodyear | 1R121204, 1R12‑1204, 1R12‑069 |
| Hendrickson | 513031 |
| Kenworth | C811003, C81‑1003 |
| Load Guard | 5C2034 |
| Navistar | 554764Cl |
| Neway | 57009069 |
| Peterbilt | C811012, C81‑1012, C816000, C81‑6000, 2456, 4759, 6746, 03‑01649, 03‑02038, 03‑02456, 03‑04759, 03‑06746, 03‑07112 |
| Triangle | 8312, AS‑8577 |
| Volvo | 85101145 |
| Watson & Chalin | AS‑0077 |

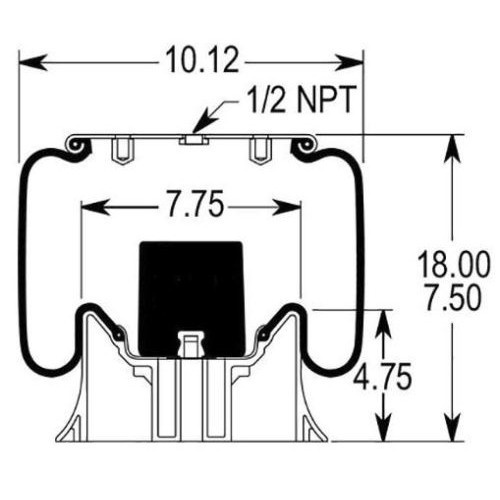

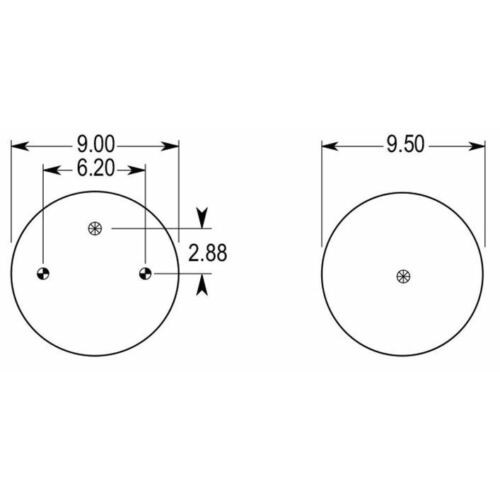

| Property | Value |
|---|---|
| Extended Height | 18.00" |
| Compressed Height | 7.50" |
| Top Plate Width | 9.00" |
| Piston Width | 9.50" |
| Weight | 13.4 lbs |
