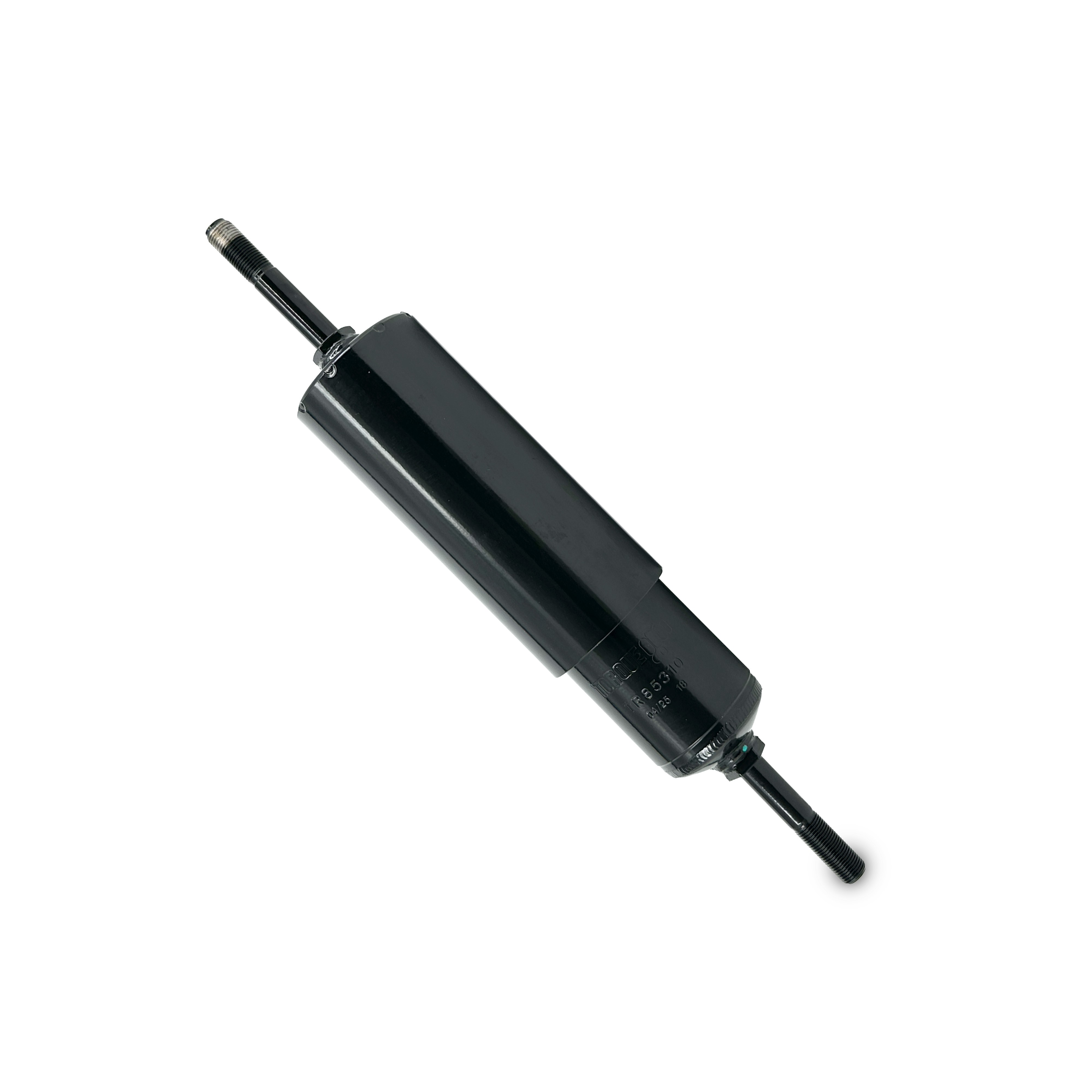

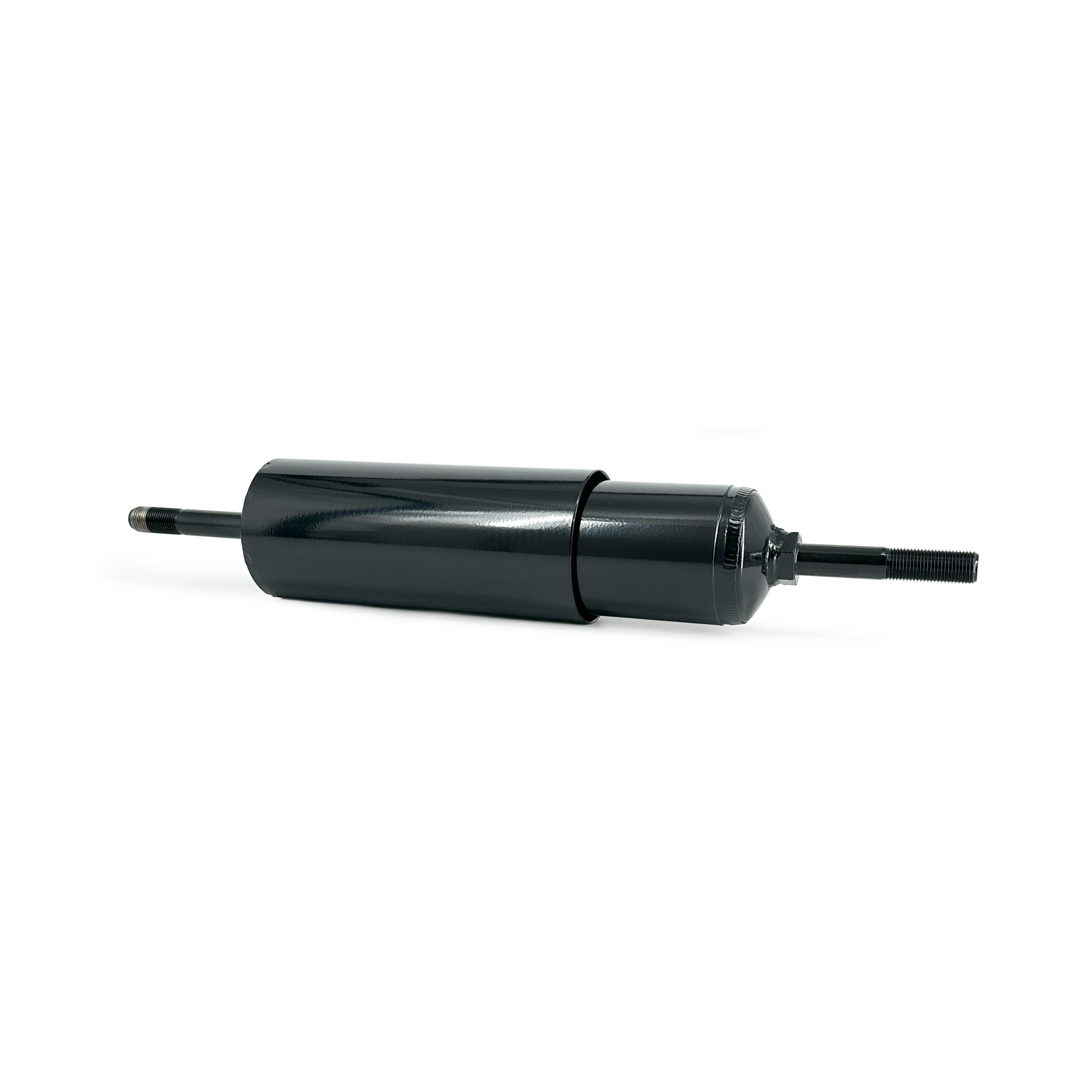

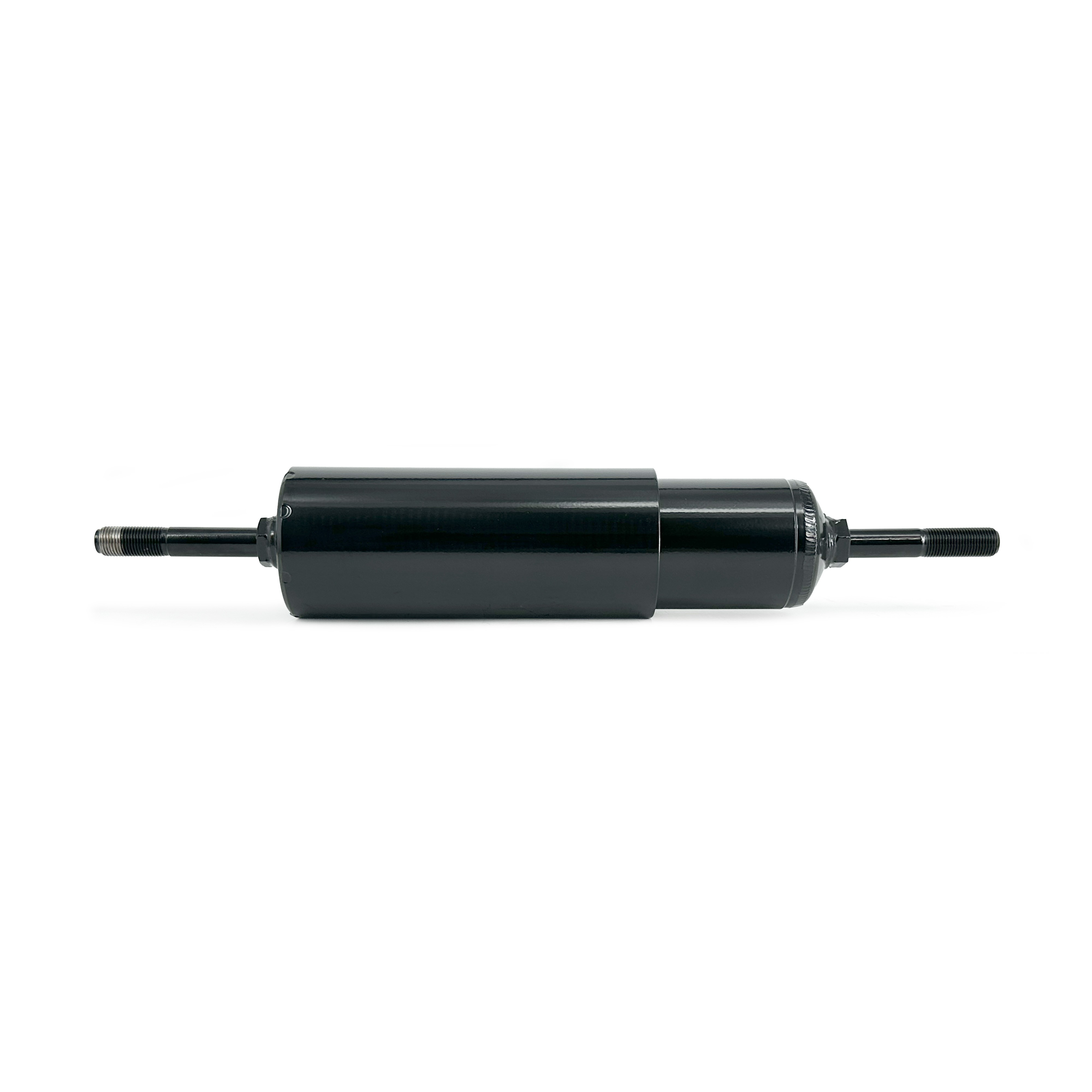

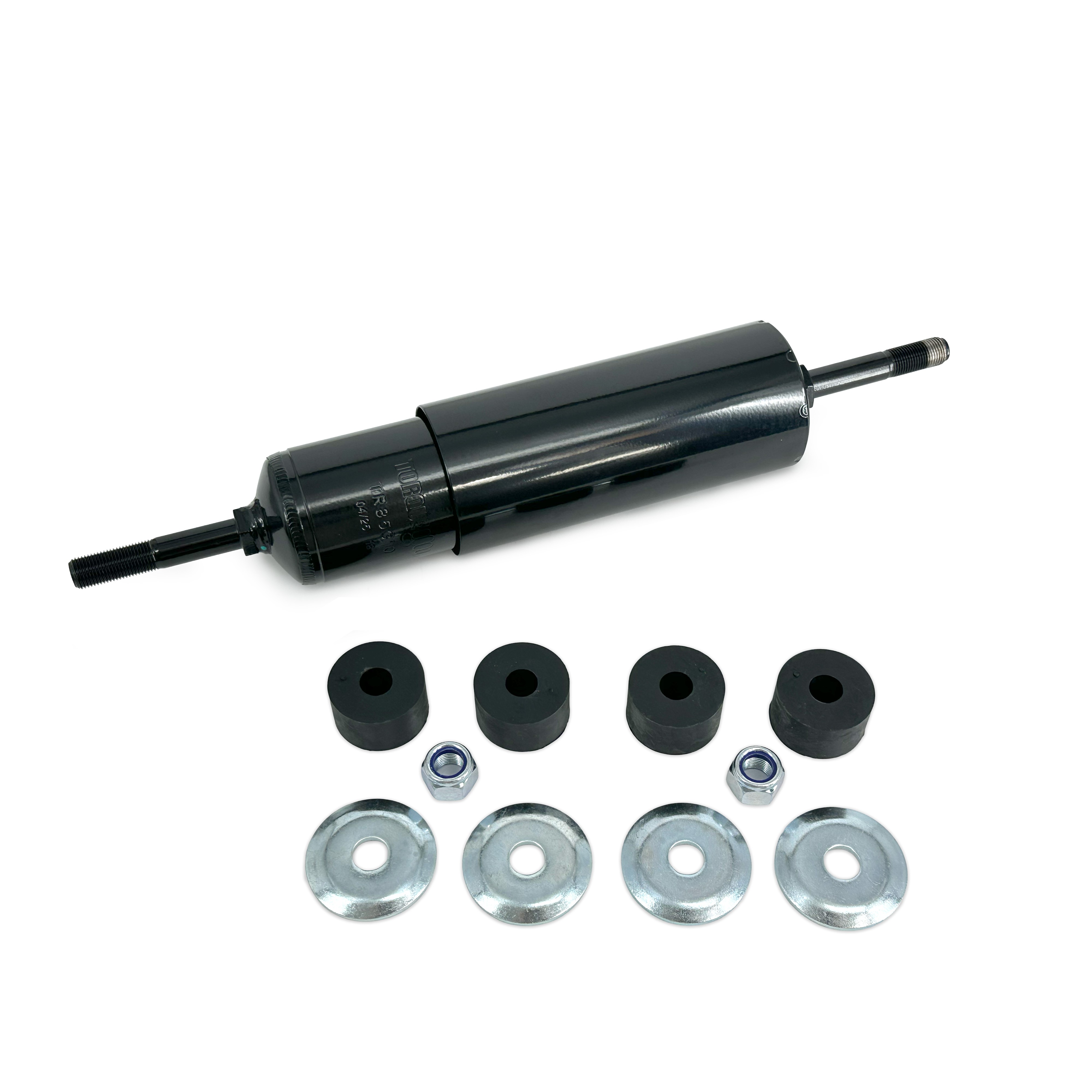

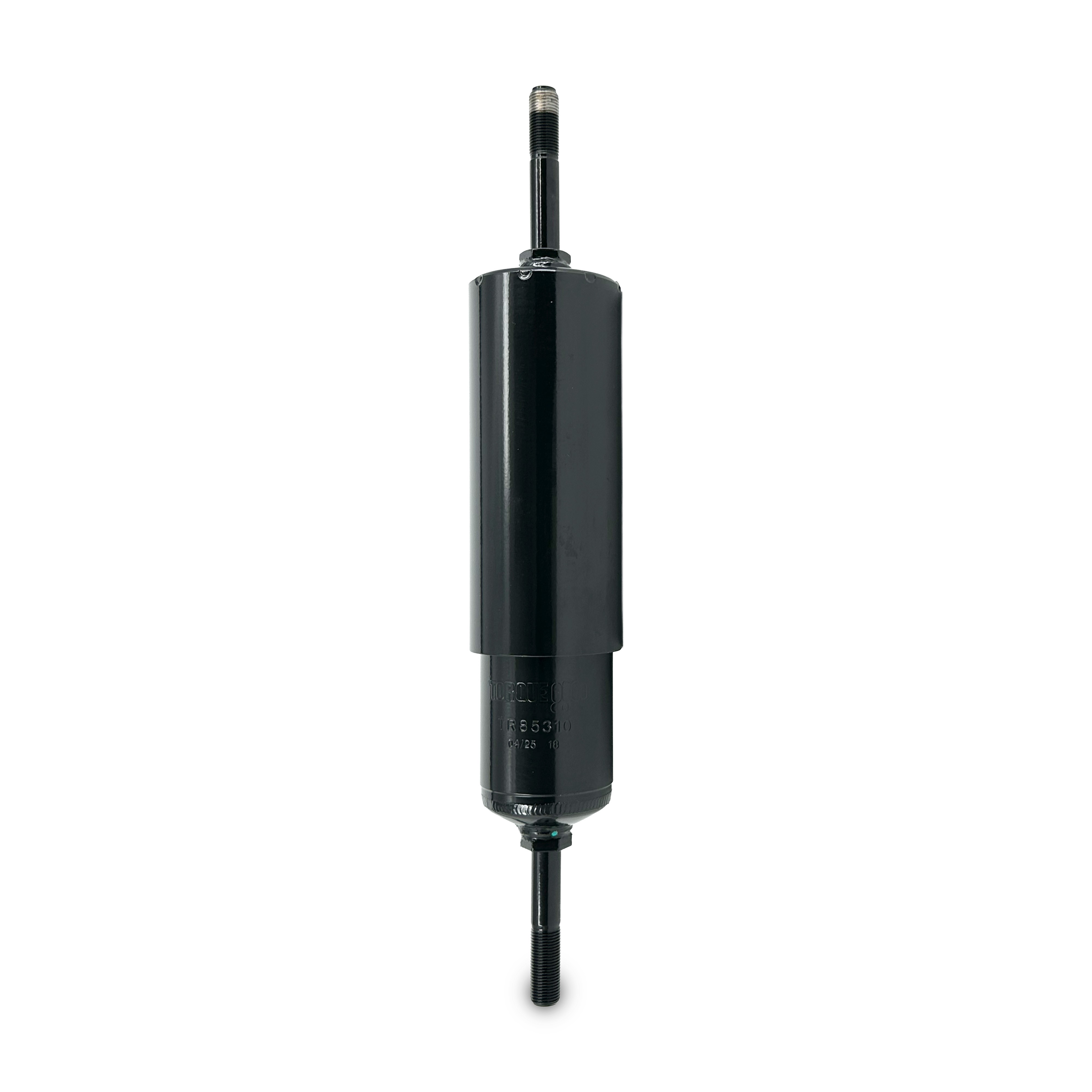

TR85310 | Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks
Description : Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks
Part Number : TR85310
Heavy Duty Shock Absorber for Kenworth and Peterbilt Trucks
| Brand | Reference Numbers |
|---|---|
| Gabriel | 85310 |
| Kenworth | 680476, 680486, K37429, K37432, K3747, K3749, K374C7 |
| Mack | 650404 |
| Meritor | 85310 |
| Monroe | 65404, 66424, 74409 |
| Ottawa | 90013787 |
| Volvo | 1091379, 3199949 |
| Volvo/White | 1091379 |
| Automann: | 565.ER3037 |
| Sampa: | 502.827 |

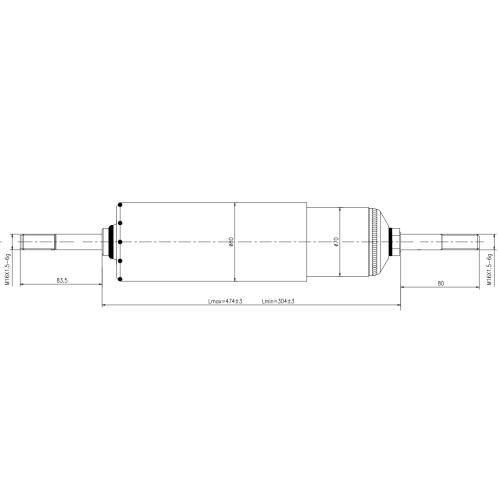

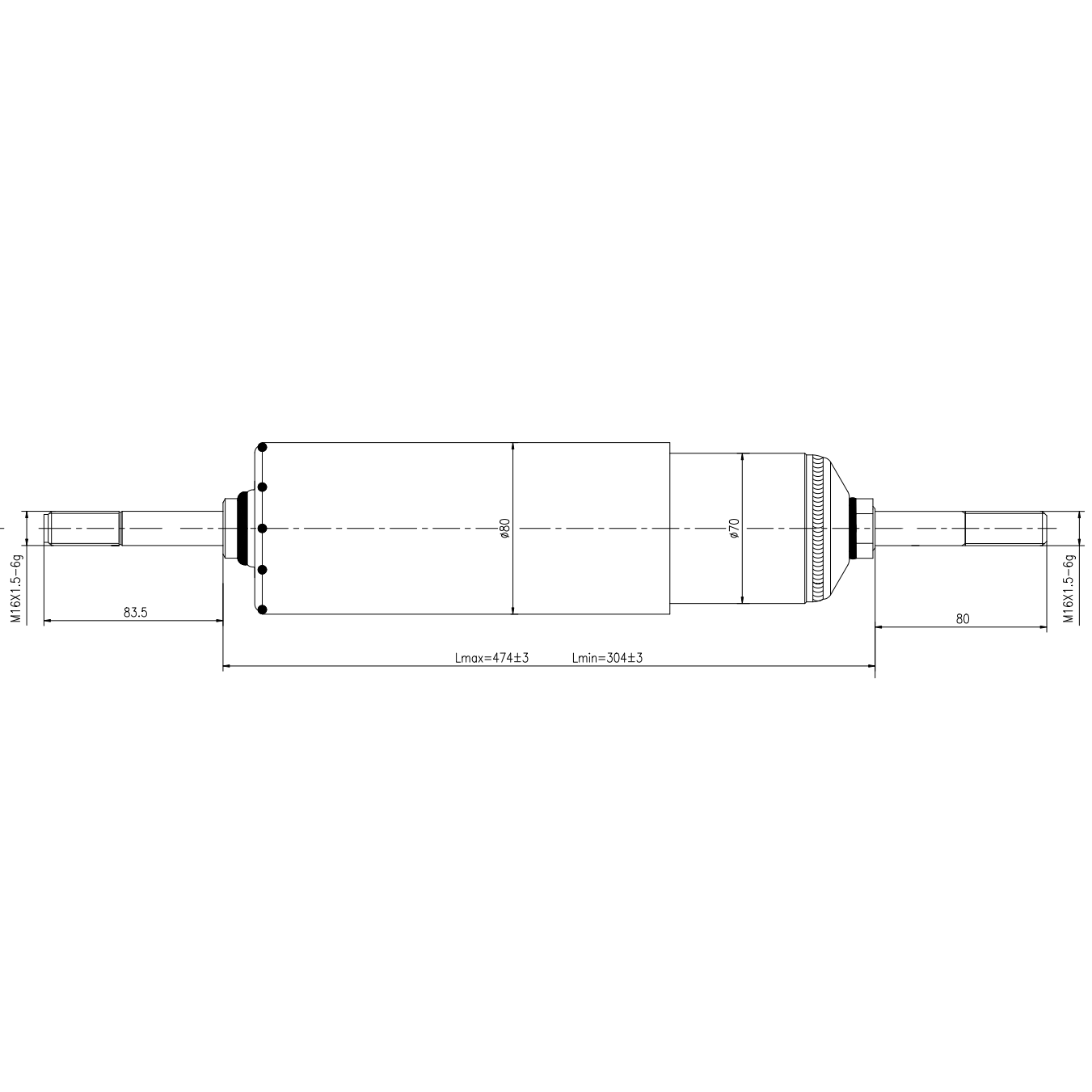

| Property | Value |
|---|---|
| Extended length | 18.63" |
| Collapsed length | 11.71" |
| Stroke | 6.92" |
| Dust tube | Yes |
| Recoil Cutoff | Yes |
| Rebound force | 1379 |
| Compression force | 578 |
| Upper Mounting | 5/8‑18 thread size x 3.28" |
| Lower Mounting | 5/8‑18 thread size x 3.28" |
| Bore | 1‑5/8" |
| Weight | 10.5lbs |
